ID
1378977
$ 7.73
1-2 weeks delivery time
Diameter, mm:
- 6
- 8
- 10
- 13
The Osculati Mirror-Polished AISI 316 Stainless Steel Swivel is a forged marine-grade swivel connector designed for mooring buoys, halyards, anchor chains, and other rigging applications. Manufactured from mirror-polished AISI 316 stainless steel, it features integrated flush pin shackles at both ends for secure and compact connections. The range includes sizes from 60 mm to 188 mm overall length, with shackle widths from 10 mm to 32 mm and pin diameters from 5 mm to 16 mm, allowing selection according to chain and rope dimensions.
- Description
- Ask a Question
-

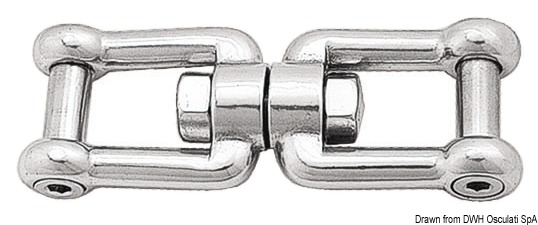

Osculati Mirror-Polished AISI 316 Stainless Steel Swivel with Flush Pin Shackles – Forged Marine Swivel Connector
The Osculati mirror-polished swivel is manufactured from forged AISI 316 stainless steel and designed for marine mooring and rigging applications. The swivel incorporates flush pin shackles on both ends, providing a compact and secure connection while allowing free rotation to reduce twisting of chains, ropes, and halyards.
Key Features
- Forged AISI 316 stainless steel construction
- Mirror-polished finish
- Integrated flush pin shackles
- Designed to reduce chain and rope twisting
- Suitable for anchor chains, mooring buoys, halyards and general marine rigging
- Multiple sizes available
Applications
- Anchor chain connections
- Mooring buoy systems
- Halyard installations
- Marine rigging assemblies
- General deck hardware connections
Available Variants
Osculati Part No. A (mm) B (mm) C (mm) D (mm) 01.439.00 60 10 11 5 01.439.01 66 12 11 6 01.439.02 88 16 16 8 01.439.03 113 20 22 10 01.439.04 152 26 28 13 01.439.05 188 32 36 16
Technical Specifications
- Material: AISI 316 stainless steel
- Construction: Forged
- Finish: Mirror-polished
- Type: Swivel with shackle + shackle (flush pin)
- Overall length range (A): 60–188 mm
- Width range (B): 10–32 mm
- Internal opening range (C): 11–36 mm
- Pin diameter range (D): 5–16 mm
All variants are sold individually. Select the required size according to the dimensions shown in the table above.
-
