ID
1378982
$ 4.69
1-2 weeks delivery time
Diameter, mm:
- 5
- 6
- 8
- 10
- 13
- 16
The Osculati Mirror-Polished AISI 316 Stainless Steel Swivel is a forged marine swivel featuring an eye on one end and a shackle on the other for anchor chain, mooring buoy, halyard, and rigging applications. Manufactured from mirror-polished AISI 316 stainless steel, it combines corrosion resistance with smooth rotation to help prevent twisting of ropes and chains. Available in sizes from 60 mm to 188 mm overall length, with shackle widths from 10 mm to 32 mm and pin diameters from 5 mm to 16 mm, this swivel is suitable for a wide range of marine connection systems.
- Description
- Ask a Question
-

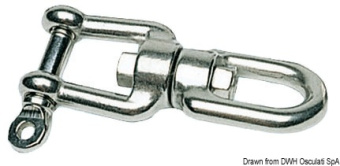

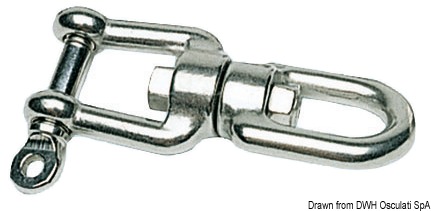

Osculati Mirror-Polished AISI 316 Stainless Steel Swivel with Eye and Shackle – Forged Marine Swivel Connector
The Osculati swivel with eye and shackle is manufactured from forged AISI 316 stainless steel and features a mirror-polished finish for marine environments. Designed for anchor chains, mooring systems, halyards, and general rigging applications, the swivel allows free rotation between connected components, reducing twisting and improving operational efficiency.
Key Features
- Forged AISI 316 stainless steel construction
- Mirror-polished marine-grade finish
- Eye and shackle configuration
- Designed to reduce chain and rope twisting
- Suitable for anchor, mooring and rigging applications
- Corrosion-resistant marine construction
- Available in multiple sizes
Applications
- Anchor chain assemblies
- Mooring buoy connections
- Halyard systems
- Marine rigging installations
- General deck hardware connections
Available Variants
Osculati Part No. A (mm) B (mm) C (mm) D (mm) 01.427.99 60 10 11 5 01.428.00 66 12 11 6 01.428.01 88 16 16 8 01.428.02 113 20 22 10 01.428.03 152 26 28 13 01.428.04 188 32 36 16
Technical Specifications
- Material: AISI 316 stainless steel
- Construction: Forged
- Finish: Mirror-polished
- Type: Swivel with eye + shackle
- Overall length (A): 60–188 mm
- Width (B): 10–32 mm
- Internal opening (C): 11–36 mm
- Pin diameter (D): 5–16 mm
All variants are sold individually. Select the appropriate size according to the dimensions required for your anchoring, mooring, or rigging installation.
-
