ID
1378970
$ 5.39
1-2 weeks delivery time
Diameter, mm:
- 5
- 6
- 8
- 10
- 13
- 16
The Osculati Mirror-Polished AISI 316 Stainless Steel Swivel is a forged marine swivel connector fitted with shackles on both ends for anchor chain, mooring buoy, halyard, and rigging applications. Manufactured from mirror-polished AISI 316 stainless steel, it provides corrosion resistance and reliable rotation under load. The range includes sizes from 60 mm to 188 mm overall length, with shackle widths from 10 mm to 32 mm and pin diameters from 5 mm to 16 mm, making it suitable for a wide variety of marine connection systems.
- Description
- Ask a Question
-

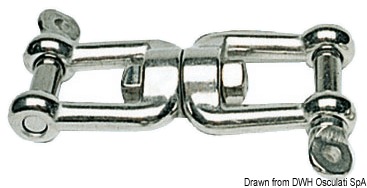

Osculati Mirror-Polished AISI 316 Stainless Steel Swivel with Shackles – Forged Marine Swivel Connector
This marine swivel is manufactured from forged AISI 316 stainless steel and features a mirror-polished finish for excellent corrosion resistance in marine environments. Designed with shackles on both ends, it allows connected chains, ropes, and rigging components to rotate freely, helping to reduce twisting and improve operational reliability.
Key Features
- Forged AISI 316 stainless steel construction
- Mirror-polished marine-grade finish
- Swivel body with shackles on both ends
- Designed to minimize chain and rope twisting
- Suitable for anchor chain systems
- Ideal for mooring buoys, halyards and marine rigging
- Available in multiple sizes
Typical Applications
- Anchor chain connections
- Mooring buoy installations
- Halyard systems
- General marine rigging
- Deck hardware connections
Available Variants
Osculati Part No. A (mm) B (mm) C (mm) D (mm) 01.428.99 60 10 11 5 01.429.00 66 12 11 6 01.429.01 88 16 16 8 01.429.02 113 20 22 10 01.429.03 152 26 28 13 01.429.04 188 32 36 16
Technical Specifications
- Material: AISI 316 stainless steel
- Construction: Forged
- Finish: Mirror-polished
- Type: Swivel with shackle + shackle
- Overall length (A): 60–188 mm
- Width (B): 10–32 mm
- Internal opening (C): 11–36 mm
- Pin diameter (D): 5–16 mm
All variants are sold individually. Select the appropriate size according to the dimensional requirements of your anchor, mooring, or rigging system.
-
