ID
1378989
$ 6.64
1-2 weeks delivery time
Diameter, mm:
- 6
- 8
- 10
The Osculati Mirror-Polished AISI 316 Stainless Steel Swivel is a forged marine swivel featuring an eye on one end and a flush pin shackle on the other. Manufactured from mirror-polished AISI 316 stainless steel, it is designed for mooring buoys, halyards, anchor chains, and general marine rigging applications. The swivel provides free rotation to help reduce twisting of chains and ropes and is available in sizes ranging from 66 mm to 113 mm overall length, with shackle widths from 12 mm to 20 mm and pin diameters from 6 mm to 10 mm.
- Description
- Ask a Question
-

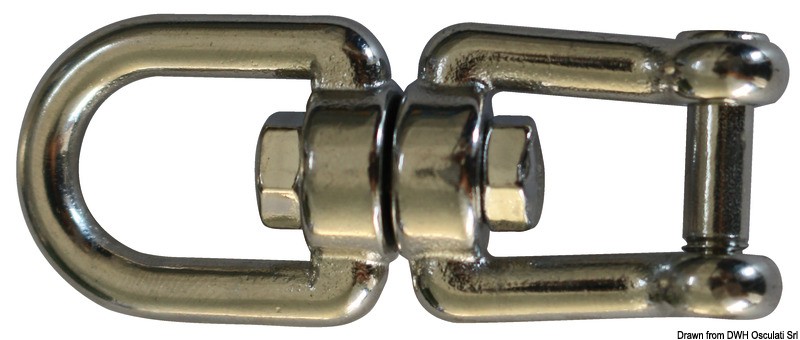

Osculati Mirror-Polished AISI 316 Stainless Steel Swivel with Eye and Flush Pin Shackle – Forged Marine Swivel Connector
The Osculati swivel with eye and flush pin shackle is manufactured from forged AISI 316 stainless steel and finished with a mirror-polished surface for excellent resistance to marine environments. Designed for anchor chains, mooring systems, halyards, and rigging installations, the swivel allows connected components to rotate freely, helping to reduce twisting and improve operational performance.
Key Features
- Forged AISI 316 stainless steel construction
- Mirror-polished finish
- Eye and flush pin shackle configuration
- Designed to reduce chain and rope twisting
- Suitable for anchor chain systems
- Ideal for mooring buoys, halyards and marine rigging
- Compact flush pin shackle design
- Marine-grade corrosion resistance
Applications
- Anchor chain connections
- Mooring buoy installations
- Halyard systems
- Marine rigging assemblies
- General deck hardware connections
Available Variants
Osculati Part No. A (mm) B (mm) C (mm) D (mm) 01.438.00 66 12 11 6 01.438.01 88 16 16 8 01.438.02 113 20 22 10
Technical Specifications
- Material: AISI 316 stainless steel
- Construction: Forged
- Finish: Mirror-polished
- Type: Swivel with eye + flush pin shackle
- Overall length (A): 66–113 mm
- Width (B): 12–20 mm
- Internal opening (C): 11–22 mm
- Pin diameter (D): 6–10 mm
All variants are sold individually. Select the required size according to the dimensions shown in the table above.
-
