The Maxwell RC12-10 Hydraulic 190TDC CW Vertical Anchor Windlass with Drum (Vetus P104944) is a top-range automatic rope/chain windlass designed for large vessels requiring increased deck clearance and hydraulic drive. This RC12 Series model is suitable for 10 mm (3/8") short-link chain and 16–20 mm (5/8"–3/4") nylon rope. Featuring a 190 TDC configuration and an integrated capstan drum, it delivers powerful and reliable anchoring performance for bluewater cruising and professional marine applications.
- Description
- Ask a Question
-

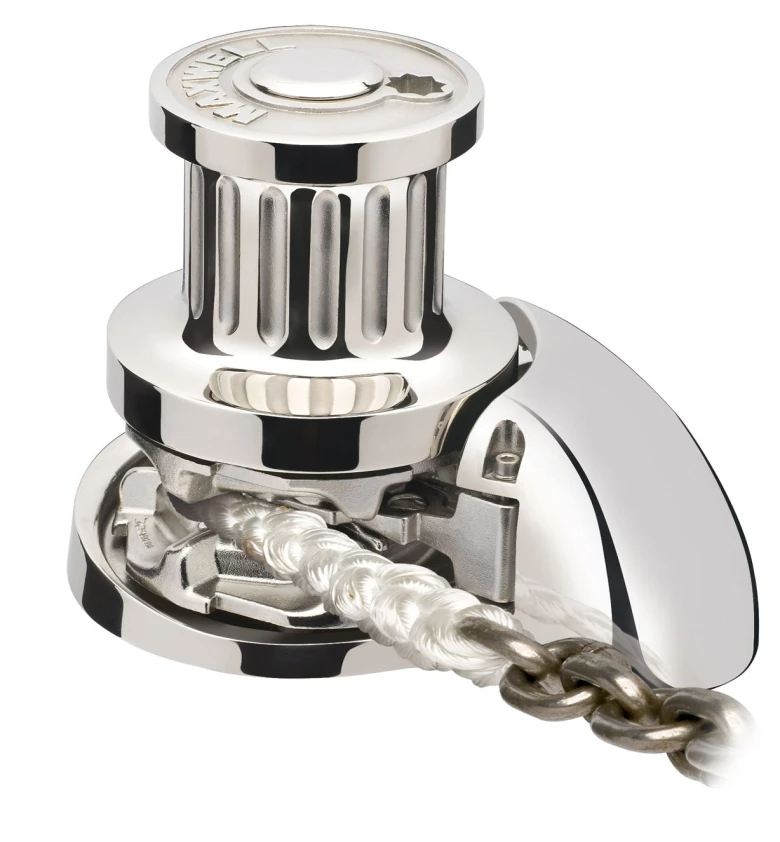

Maxwell RC12-10 Hydraulic 190TDC CW Vertical Anchor Windlass with Drum (Vetus P104944)
The Maxwell RC12-10 Hydraulic is a fully automatic vertical rope/chain anchor windlass and represents the top-range model within the Maxwell RC Series. This version is configured with an increased Total Deck Clearance of 190 TDC, allowing installation on vessels with thick deck structures or special mounting requirements.
Manufactured from marine-grade AISI 316 stainless steel, the RC12-10 offers excellent corrosion resistance and long-term durability. The patented Wave Design™ chainwheel ensures smooth anchor deployment and retrieval, secure handling of both chain and rope, and reliable passage of the rope-to-chain splice during anchoring operations.
This configuration is equipped with a fluted stainless steel capstan drum, enabling independent rope handling operations in addition to standard anchor deployment and retrieval. A ratcheted mechanism prevents backwinding during emergency manual recovery, ensuring safe and controlled operation under high anchoring loads. The hydraulic drive system is ideal for vessels equipped with onboard hydraulic power.
Specification Value Vetus Part Number P104944 Model RC12-10 Hydraulic Series Maxwell RC Series Drive Type Hydraulic Installation Type Vertical Operation Automatic rope / chain Drum Yes, fluted stainless steel capstan drum Total Deck Clearance 190 TDC Maximum Pull / Lift 1134 kg Net Weight 26 kg Rotation CW (clockwise)
Rope and Chain Compatibility
- Short link chain: 10 mm (3/8")
- Chain diameter: 10 mm
- Recommended rope material: Nylon
- Rope diameter: 16–20 mm (5/8"–3/4")
Recommended Vessel Application
- Large cruising yachts
- Powerboats with hydraulic systems
- Bluewater and professional marine vessels
- Installations requiring increased deck clearance
Key Features
- Top-range hydraulic vertical rope/chain anchor windlass
- Integrated capstan drum for independent rope handling
- 190 TDC increased deck clearance for thick deck installations
- Wave Design™ chainwheel for smooth and secure anchoring
- Ratcheted mechanism to prevent backwinding during manual retrieval
- Marine-grade AISI 316 stainless steel construction
Operational Notes
- The windlass must be used in conjunction with a chain stopper and/or alternative snubbing device to remove load from the windlass while at anchor.
- A chain stopper or alternative snubbing system must also be used to secure the anchor in the fully raised position while the vessel is under way.
-
