ID
1281726
$ 3,113.59
1-2 weeks delivery time
-
+
The Maxwell RC10-8 Hydraulic 100TDC CW Vertical Anchor Windlass (Vetus P102596) is a heavy-duty hydraulic rope/chain windlass designed for demanding marine conditions. Perfect for boats up to 48 feet (light displacement) or up to 40 feet (heavy displacement), this model offers excellent anchoring performance with a maximum pull of 700 kg and a static hold of 1500 kg. Built from durable marine-grade stainless steel and chromed bronze, it features a vertical installation with 100 TDC deck clearance and operates with hydraulic power for smooth, reliable anchor retrieval and deployment.
- Description
- Ask a Question
-

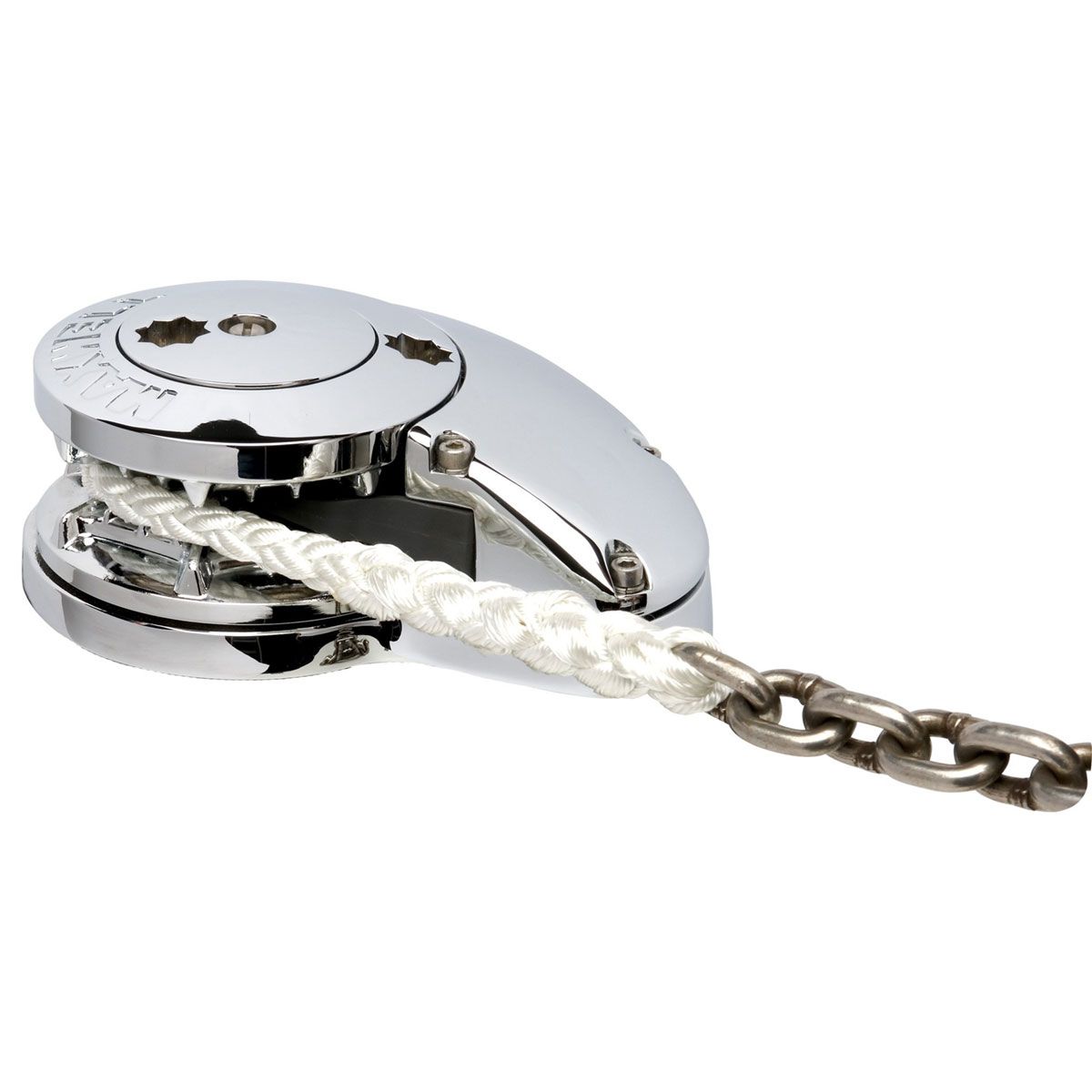

Maxwell RC10-8 Hydraulic 100TDC CW Vertical Anchor Windlass (Vetus P102596)
The Maxwell RC10-8 is a hydraulic automatic rope/chain anchor windlass, designed for use on boats up to 48 feet in length. Its low-profile vertical design provides an efficient anchoring solution while maintaining a clean deck layout. The combination of marine-grade stainless steel and chromed bronze construction ensures long-lasting durability in harsh marine environments.
Specification Value Vetus Part Number P102596 Model RC10-8 Hydraulic Voltage Hydraulic (no electric) Power Hydraulic Drive (equivalent to 1000 W electric) Installation Type Vertical Operation Automatic rope/chain Deck Clearance 100 TDC Maximum Pull / Lift 700 kg Static Hold 1500 kg Chain Speed (Retrieval) 24 m/min Rope Speed (Retrieval) 20 m/min Weight 19 kg Drum No Rotation CW (clockwise)
Rope and Chain Compatibility
- Short link chain: 8 mm (5/16")
- Chain diameter: 8 mm
- Rope material: Nylon
- Rope diameter: 14–16 mm (9/16"–5/8")
Recommended Vessel Size
- Up to 48 ft (light displacement)
- Up to 40 ft (heavy displacement)
Key Features
- Hydraulic drive for powerful and smooth anchoring operation
- Low-profile design with 100 TDC deck clearance
- Built with marine-grade stainless steel and chromed bronze for corrosion resistance
- Maximum pull of 700 kg with a static hold of 1500 kg
- Ideal for bluewater cruising and demanding conditions
Included Components
- Windlass unit
- Solenoid
- Crank handle
- User manual
- Installation manual
Operational Notes
- The windlass must be used in conjunction with a chain stopper and/or alternative snubbing device to remove load from the windlass while at anchor.
- A chain stopper or alternative snubbing system should also be used to secure the anchor in the fully raised position while the vessel is under way.
-
