The Maxwell RC12-10 vertical automatic rope/chain windlass with drum, article number Vetus P104949, is a stainless steel anchor winch designed for use with 10 mm or 3/8" chain and nylon rope with diameters from 16 mm to 20 mm (5/8" to 3/4"). Powered by a 1200 W motor operating on 24 V, this 190TDC version provides a maximum pull of 1134 kg and features an integrated drum for enhanced line handling. The windlass incorporates an automatic rope/chain handling system and a ratcheted mechanism lever to prevent backwinding during emergency manual retrieval, and is supplied as a complete package for fully automatic dual-direction control.
- Description
- Ask a Question
-

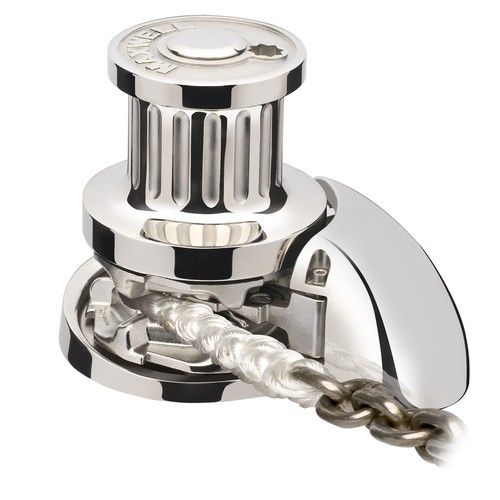

Maxwell RC12-10 Vertical Automatic Rope and Chain Windlass with Drum 24V 1200W 190TDC
The Maxwell RC12-10 is a stainless steel vertical automatic rope/chain windlass with drum from Maxwell’s top-range RC Series. This 190TDC model is designed for controlled anchoring operations using short-link chain in combination with nylon rope, while the integrated drum provides additional line handling capability.
The windlass features an automatic rope/chain handling system and a ratcheted mechanism lever that prevents backwinding during emergency manual retrieval of the anchor rode. For safe and correct operation, the windlass must be used in conjunction with a chain stopper and/or an alternative snubbing device to remove load from the windlass while the vessel is lying at anchor. These systems must also be used to secure the anchor in the fully raised position when underway.
Key Features
- Vertical windlass configuration
- Automatic rope and chain handling system
- Integrated drum for additional rope handling
- Ratcheted mechanism lever to prevent backwinding during manual recovery
- Designed for use with chain stopper or alternative snubbing device
- Complete package for automatic dual-direction control
- Available in a version with increased deck clearance
Technical Specifications
Parameter Specification Article Number Vetus P104949 Motor Power 1200 W Voltage 24 V Configuration Vertical Rope / Chain Type Automatic rope/chain Drum Yes Maximum Pull / Lift 1134 kg Weight 26 kg
Rope and Chain Compatibility
Component Size Short Link Chain 10 mm Chain 10 mm Nylon Rope 16–20 mm (5/8"–3/4") -
