The Maxwell RC12-10 vertical automatic rope/chain windlass, article number Vetus P104918, is a stainless steel anchor winch designed for use with 10 mm or 3/8" chain and nylon rope ranging from 16 mm to 20 mm (5/8" to 3/4"). Powered by a 1200 W motor, this 12 V windlass delivers a maximum pull of 1134 kg and features an automatic rope/chain handling system with a ratcheted mechanism lever to prevent backwinding during emergency manual retrieval. The unit belongs to Maxwell’s top-range RC Series and is supplied as a complete package for fully automatic dual-direction control.
- Description
- Ask a Question
-

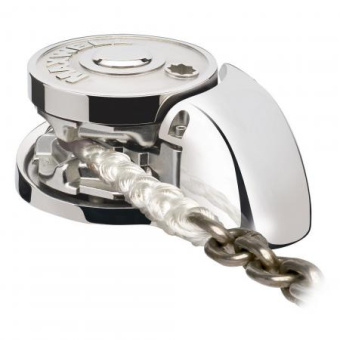

Maxwell RC12-10 Vertical Automatic Rope and Chain Windlass 12V 1200W
The Maxwell RC12-10 is a stainless steel vertical automatic rope/chain windlass from Maxwell’s top-range RC Series. Designed for reliable anchoring operations, it is suitable for combined use with short-link chain and nylon rope. The windlass incorporates an automatic rope/chain handling system and a ratcheted mechanism lever that prevents backwinding during emergency manual retrieval of the anchor rode.
For safe operation, this windlass must be used in conjunction with a chain stopper and/or an alternative snubbing device. These systems are required to remove load from the windlass while at anchor and to secure the anchor in the fully raised position when underway.
Key Features
- Vertical configuration for deck installation
- Automatic rope and chain handling system
- Ratcheted mechanism lever to prevent backwinding during manual recovery
- Designed for use with chain stopper or alternative snubbing system
- Supplied as a complete package for automatic dual-direction control
- Available in a version with increased deck clearance
Technical Specifications
Parameter Specification Article Number Vetus P104918 Motor Power 1200 W Voltage 0 V Configuration Vertical Rope / Chain Type Automatic rope/chain Drum No Maximum Pull / Lift 1134 kg Weight 23 kg
Rope and Chain Compatibility
Component Size Short Link Chain 10 mm Chain 10 mm Nylon Rope 16–20 mm (5/8"–3/4") -
