ID
1281767
$ 7,215.22
1-2 weeks delivery time
-
+
The Maxwell RC12-10 vertical automatic rope/chain hydraulic windlass, article number Vetus P104920, is a stainless steel anchor winch designed for use with 10 mm or 3/8" chain and nylon rope with diameters from 16 mm to 20 mm (5/8" to 3/4"). This hydraulic version of Maxwell’s top-range RC Series provides a maximum pull of 1134 kg and features an automatic rope/chain handling system. A ratcheted mechanism lever prevents backwinding during emergency manual retrieval, and the windlass is supplied as a complete package for fully automatic dual-direction control.
- Description
- Ask a Question
-

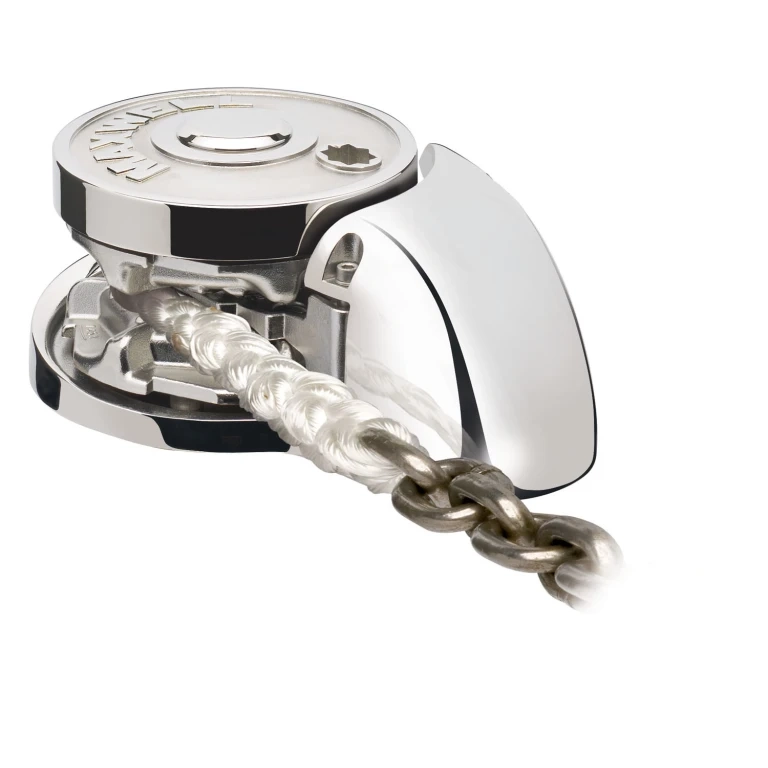

Maxwell RC12-10 Vertical Automatic Rope and Chain Hydraulic Windlass
The Maxwell RC12-10 is a stainless steel vertical automatic rope/chain windlass from Maxwell’s top-range RC Series. This hydraulic version is designed for controlled anchoring operations using short-link chain and nylon rope. The automatic rope/chain handling system ensures reliable transition between rope and chain during deployment and retrieval.
The windlass is equipped with a ratcheted mechanism lever that prevents backwinding during emergency manual retrieval of the anchor rode. For correct and safe operation, the windlass must be used in conjunction with a chain stopper and/or an alternative snubbing device to remove load from the windlass while the vessel is lying at anchor. These systems must also be used to secure the anchor in the fully raised position when underway.
Key Features
- Vertical windlass configuration
- Hydraulic automatic rope and chain handling system
- Ratcheted mechanism lever to prevent backwinding during manual recovery
- Designed for use with chain stopper or alternative snubbing device
- Supplied as a complete package for automatic dual-direction control
- Available in a version with increased deck clearance
Technical Specifications
Parameter Specification Article Number Vetus P104920 Drive Type Hydraulic Voltage 0 V Configuration Vertical Rope / Chain Type Automatic rope/chain Drum No Maximum Pull / Lift 1134 kg Weight 23 kg
Rope and Chain Compatibility
Component Size Short Link Chain 10 mm Chain 10 mm Nylon Rope 16–20 mm (5/8"–3/4") -
