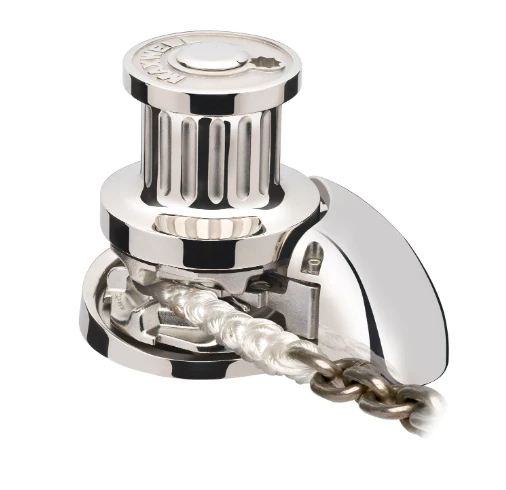

The Maxwell RC12-13 hydraulic anchor windlass (Vetus part number P104672) is a vertical stainless steel rope/chain windlass designed for automatic anchoring operations using a hydraulic drive system. This configuration features clockwise (CW) rotation, a total drum capacity rating of 190TDC, and an integrated drum for controlled rope and chain handling. The windlass is compatible with 13 mm DIN766 short link anchor chain and is intended for demanding marine installations requiring high-capacity hydraulic performance.
- Description
- Ask a Question
-
Maxwell RC12-13 Vertical Hydraulic Anchor Windlass, 190TDC, CW, with Drum
The Maxwell RC12-13 is a vertical hydraulic anchor windlass from the RC Series, engineered for high-load marine anchoring applications. Manufactured from stainless steel, this model is designed for automatic rope and chain handling and utilizes a hydraulic drive system for consistent and reliable performance. The windlass is configured for clockwise (CW) rotation and provides a total drum capacity rating of 190TDC. An integrated drum allows controlled handling of rope and chain combinations.
Design and Functional Features
- Vertical windlass configuration for efficient deck and below-deck installation
- Hydraulic drive system suitable for continuous-duty anchoring operations
- Automatic rope and chain handling capability
- Clockwise (CW) rotation configuration
- Total Drum Capacity rating: 190TDC
- Integrated drum for rope and chain management
- Part of the Maxwell RC12 vertical windlass series
Operational and Safety Notes
- Designed for automatic anchor deployment and retrieval under hydraulic power
- Must be used in conjunction with a chain stopper and/or alternative snubbing device to remove load from the windlass while at anchor
- A chain stopper or alternative snubbing system should also be used to secure the anchor in the fully raised position while underway
Compatible Rode Specifications
- Chain type: Short link anchor chain
- Maximum chain diameter: 13 mm (DIN766)
- Rode configuration: Rope / chain combination depending on installation
Technical Specifications
Parameter Specification Part Number P104672 Model RC12-13 Drive Type Hydraulic Configuration Vertical Total Drum Capacity 190 TDC Rotation Direction Clockwise (CW) Drum Yes Chain Compatibility 13 mm DIN766 -
