ID
1300574
$ 7,050.89
1-2 weeks delivery time
-
+

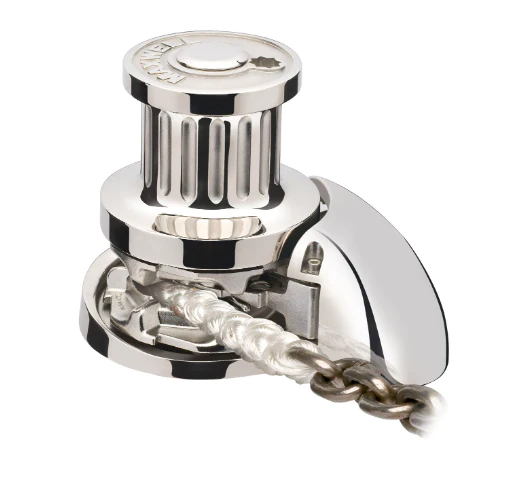

The Maxwell RC12-13 vertical electric anchor windlass (Vetus part number P104671) is a robust and efficient anchoring system powered by a 24 V, 1200 W electric drive with clockwise (CW) rotation and a 190TDC rope/chain capacity rating. Equipped with an integrated drum and compatible with 13 mm DIN766 short link anchor chain, this windlass offers reliable performance for automatic anchor deployment and retrieval in marine applications.
- Description
- Ask a Question
-
Maxwell RC12-13 Vertical Electric Anchor Windlass, 24V, 1200W, 190TDC, CW, with Drum
The Maxwell RC12-13 vertical electric anchor windlass, supplied under Vetus part number P104671, combines powerful performance with dependable anchoring functionality. Featuring a 24 V electric drive with 1200 W output and clockwise (CW) rotation, this model provides a 190TDC total drum capacity for efficient rope and chain handling on board. Designed for marine anchoring and mooring operations, the windlass includes an integrated drum and is compatible with 13 mm DIN766 short link anchor chain.
Key Features
- Vertical windlass configuration suitable for electric drive installations
- 24 V DC electric motor with 1200 W power output
- Clockwise (CW) rotation
- Total Drum Capacity (TDC): 190TDC
- Integrated drum for controlled rope and chain handling
- Designed for automatic anchor deployment and retrieval
- Part of the proven Maxwell RC12 vertical rope/chain windlass series
Anchoring Operation Notes
- Compatible with 13 mm DIN766 short link anchor chain
- Recommended for use with chain stoppers or snubbing devices to take load off the windlass when at anchor
- Chain stopper or snubbing system should also be used to secure the anchor in the fully raised position while underway
Technical Specifications
Parameter Specification Part Number P104671 Model RC12-13 Drive Type Electric Operating Voltage 24 V DC Motor Power 1200 W Total Drum Capacity 190 TDC Rotation Direction Clockwise (CW) Drum Yes Chain Compatibility 13 mm DIN766 short link chain -
