ID
1281836
$ 7,708.22
1-2 weeks delivery time
-
+
The Maxwell RC12-13 hydraulic anchor windlass (Vetus part number P104663) is a vertical stainless steel automatic windlass with hydraulic drive, configured for anti-clockwise (ACW) rotation and featuring a 90TDC total capacity rating and integrated drum. Designed for reliable marine anchoring and mooring operations, it is compatible with 13 mm DIN766 short link anchor chain and suitable for installations requiring robust hydraulic performance with enhanced rope and chain handling.
- Description
- Ask a Question
-

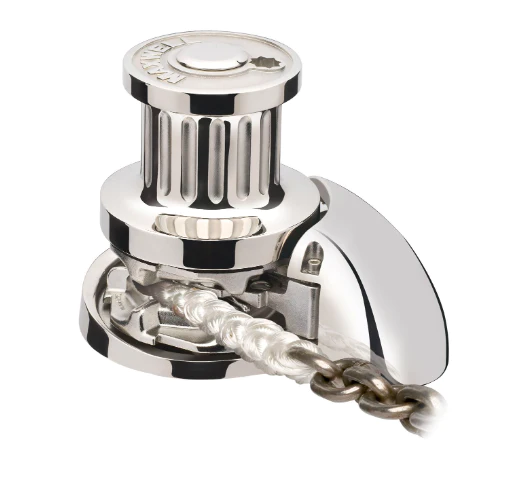

Maxwell RC12-13 Vertical Hydraulic Anchor Windlass, 90TDC, ACW, with Drum
The Maxwell RC12-13 hydraulic anchor windlass, supplied under Vetus part number P104663, is engineered for dependable automatic anchoring and mooring performance in marine environments. This model is powered by a hydraulic drive system and configured for anti-clockwise (ACW) rotation. It is rated with a total drum capacity (TDC) of 90 and includes an integrated drum to facilitate efficient rope and chain management.
Key Functional Features
- Vertical windlass configuration for efficient deck and below-deck installation
- Hydraulic drive system providing high-load anchoring performance
- Automatic rope and chain handling capability
- Anti-clockwise (ACW) rotation configuration
- Total Drum Capacity rating: 90TDC
- Integrated drum for combined rope and chain handling
- Part of the Maxwell RC12 automatic rope/chain windlass series
Operational and Safety Notes
- Designed for automatic anchor deployment and retrieval under hydraulic power
- Use with a chain stopper and/or alternative snubbing device is recommended to take load off the windlass while at anchor
- Chain stopper or snubbing system should also be used to secure the anchor in the fully raised position while underway
Compatible Rode Specifications
- Chain type: Short link anchor chain
- Maximum chain diameter: 13 mm (DIN766)
- Rode configuration: Rope / chain combination depending on installation
Technical Specifications
Parameter Specification Part Number P104663 Model RC12-13 Drive Type Hydraulic Configuration Vertical Total Drum Capacity 90 TDC Rotation Direction Anti-clockwise (ACW) Drum Yes Chain Compatibility 13 mm DIN766 short link chain -
