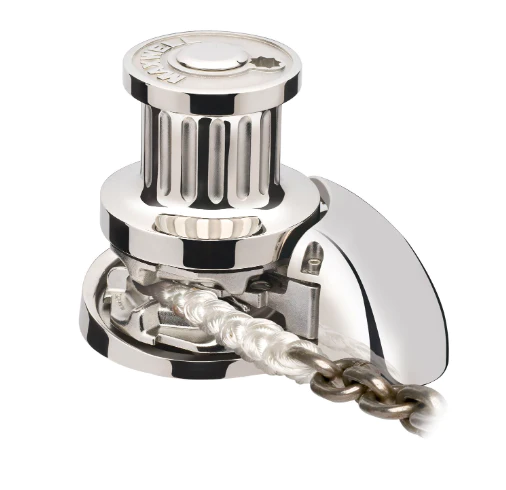

The Maxwell RC12-13 electric anchor windlass (Vetus part number P104661) is a vertical stainless steel automatic windlass powered by a 12 V, 1200 W electric drive with anti-clockwise (ACW) rotation and a total capacity of 90TDC. Equipped with an integrated drum for rope and chain handling and compatible with 13 mm DIN766 short link anchor chain, this windlass provides reliable performance for automatic anchoring operations in marine applications.
- Description
- Ask a Question
-
Maxwell RC12-13 Vertical Electric Anchor Windlass, 12V, 1200W, 90TDC, ACW, with Drum
The Maxwell RC12-13 vertical electric anchor windlass, supplied under Vetus part number P104661, is engineered for dependable automatic anchoring and mooring operations. Powered by a 12 V electric motor rated at 1200 W and configured for anti-clockwise (ACW) rotation, this model provides a total capacity rating of 90TDC. An integrated drum enables controlled handling and storage of rope/chain combinations on board.
Design and Functional Features
- Vertical windlass configuration suitable for deck and below-deck electric drive installation
- 12 V DC electric motor with 1200 W power output
- Anti-clockwise (ACW) rotation configuration
- Total Capacity rating: 90TDC
- Integrated drum for efficient rope and chain handling
- Part of the Maxwell RC12 vertical windlass series with advanced chainwheel design
Operational and Safety Notes
- Designed for automatic anchor deployment and retrieval
- Compatible with a 13 mm DIN766 short link anchor chain
- Use with chain stoppers or snubbing devices is recommended to remove load from the windlass when at anchor
- Chain stopper or snubbing system should also secure the anchor in the fully raised position while underway
Compatible Rode Specifications
- Chain type: Short link anchor chain
- Maximum compatible chain diameter: 13 mm (DIN766)
- Rope/chain configuration as per installation requirements
Technical Specifications
Parameter Specification Part Number P104661 Model RC12-13 Drive Type Electric Operating Voltage 12 V DC Motor Power 1200 W Total Capacity 90 TDC Rotation Direction Anti-clockwise (ACW) Drum Yes Chain Compatibility 13 mm DIN766 short link chain -
