The Maxwell RC12-13 vertical electric anchor windlass (Vetus part number P104667) is a powerful automatic windlass with a 12 V, 1200 W electric drive and anti-clockwise (ACW) rotation. This model features a 190TDC total capacity rating and is compatible with 13 mm DIN766 short link anchor chain. Supplied without an integrated drum, it offers versatile installation for marine anchoring applications requiring reliable vertical electric performance.
- Description
- Ask a Question
-

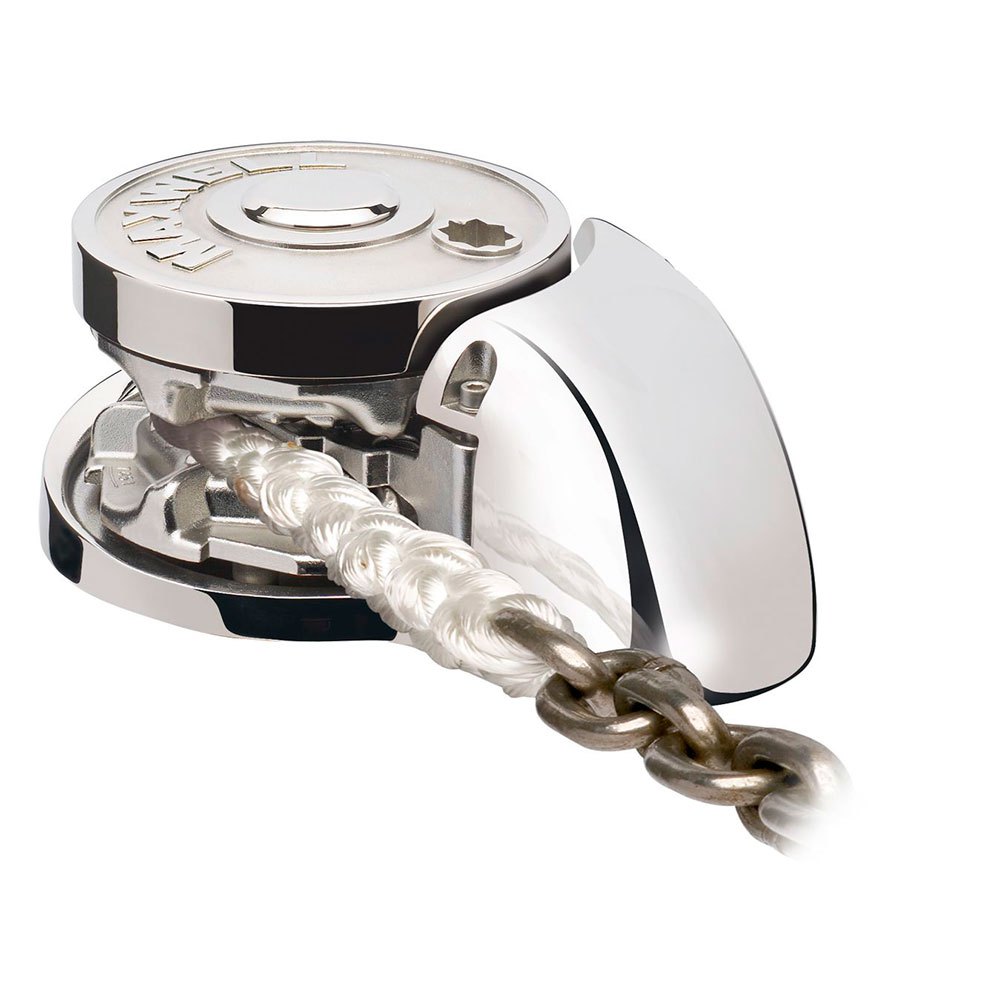

Maxwell RC12-13 Vertical Electric Anchor Windlass, 12V, 1200W, 190TDC, ACW
The Maxwell RC12-13 vertical electric anchor windlass, supplied under Vetus part number P104667, is designed for dependable automatic anchoring and mooring operations. This model incorporates a 12 V DC electric drive with a 1200 W power rating and is configured for anti-clockwise (ACW) rotation. With a 190TDC total capacity rating, it reliably handles anchor chain and rope combinations in demanding marine conditions.
Design and Functional Features
- Vertical windlass configuration for streamlined deck and below-deck installation
- 12 V DC electric drive system with 1200 W motor
- Automatic rope and chain handling capability
- Anti-clockwise (ACW) rotation configuration
- Total capacity rating: 190TDC
- Supplied without integrated drum (no reel included)
- Part of the Maxwell RC12 vertical windlass series known for performance and reliability
Operational and Safety Notes
- Designed for automatic anchor deployment and retrieval under electric power
- Use with a chain stopper and/or snubbing device is recommended to take load off the windlass while at anchor
- A chain stopper or snubbing system should also secure the anchor in the fully raised position while underway
Compatible Rode Specifications
- Chain type: Short link anchor chain
- Maximum chain diameter: 13 mm (DIN766)
- Rode configuration: Chain or rope/chain combination depending on installation needs
Technical Specifications
Parameter Specification Part Number P104667 Model RC12-13 Drive Type Electric Operating Voltage 12 V DC Motor Power 1200 W Total Capacity 190 TDC Rotation Direction Anti-clockwise (ACW) Drum No Chain Compatibility 13 mm DIN766 short link chain -
