$ 7,050.89
1-2 weeks delivery time
-
+

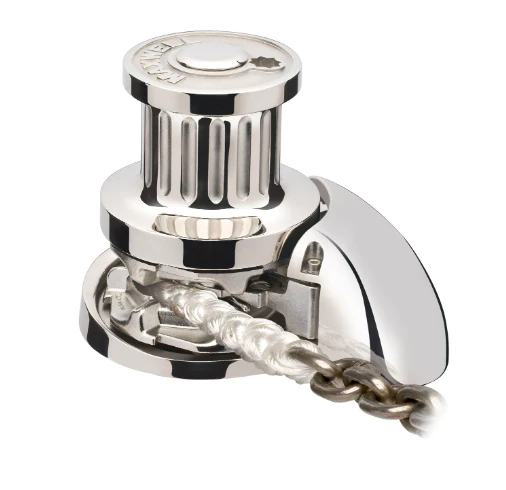

The Maxwell RC12-13 vertical electric anchor windlass (Vetus part number P104670) is a powerful automatic anchoring system with a 12 V, 1200 W electric drive configured for clockwise (CW) rotation and a total drum capacity of 190TDC. Designed for reliable marine anchoring performance, it includes an integrated drum and is compatible with 13 mm DIN766 chain, providing robust line management and dependable operation in demanding conditions.
- Description
- Ask a Question
-
Maxwell RC12-13 Vertical Electric Anchor Windlass, 12V, 1200W, 190TDC, CW, with Drum
The Maxwell RC12-13 vertical electric anchor windlass, supplied under Vetus part number P104670, is engineered for high-performance automatic anchoring and mooring operations. This model features a 12 V electric motor rated at 1200 W with clockwise (CW) rotation and a 190TDC total drum capacity. An integrated drum facilitates effective handling of rope and chain combinations, making this windlass suitable for a wide range of marine anchoring needs.
Key Functional Features
- Vertical windlass configuration optimized for electric drive installation
- 12 V DC electric motor with 1200 W output
- Clockwise (CW) rotation
- Total Drum Capacity: 190TDC
- Integrated drum for combined rope and chain handling
- Part of the Maxwell RC12 vertical windlass series
Anchoring Operation Notes
- Designed for automatic anchor deployment and retrieval
- Compatible with 13 mm DIN766 short link anchor chain
- Recommended for use with chain stoppers or snubbing devices to take load off the windlass when at anchor
Technical Specifications
Parameter Specification Part Number P104670 Model RC12-13 Drive Type Electric Operating Voltage 12 V DC Motor Power 1200 W Total Drum Capacity 190 TDC Rotation Direction Clockwise (CW) Drum Yes Chain Compatibility 13 mm DIN766 -
