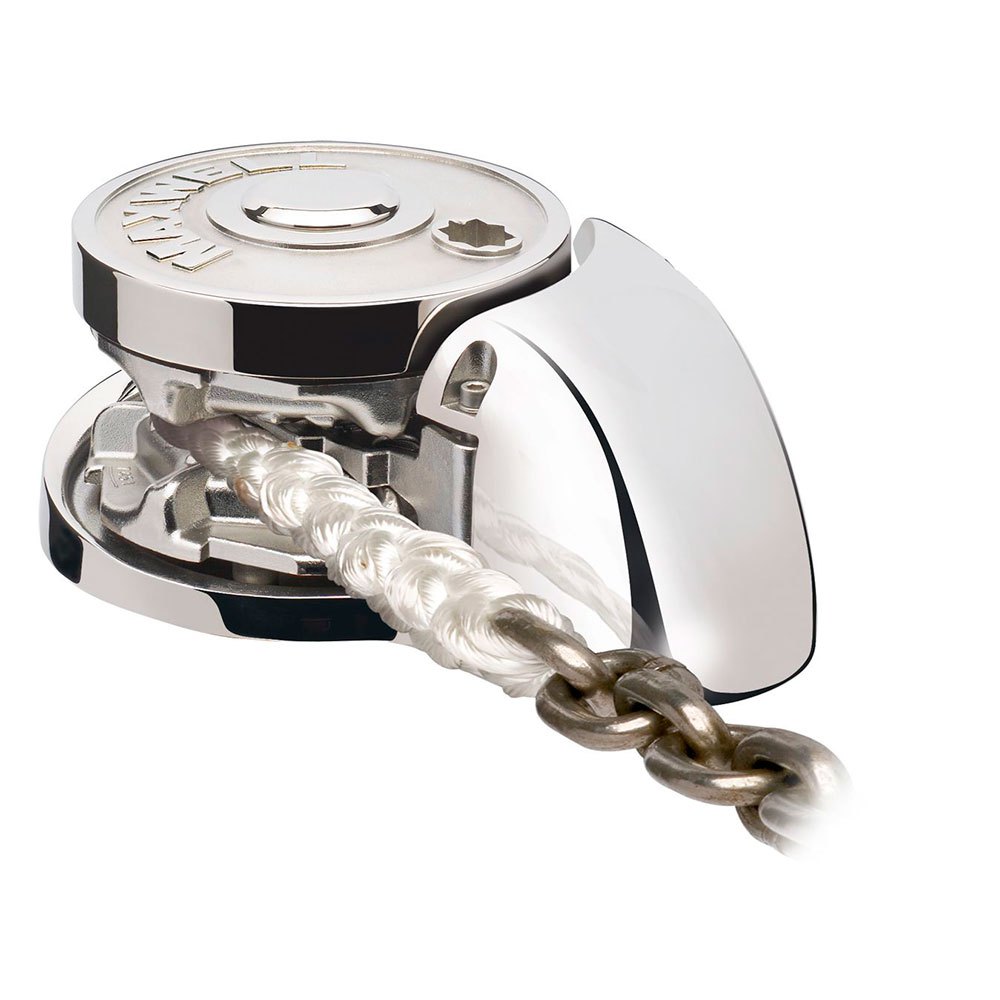

The Maxwell RC12-13 electric anchor windlass (Vetus part number P104656) is a vertical stainless steel rope/chain windlass powered by a 24 V, 1200 W electric motor and configured for anti-clockwise (ACW) rotation. This model features a 90TDC total capacity rating and is designed for automatic anchoring operations using short link anchor chain up to 13 mm DIN766. Supplied without an integrated drum, it provides installation flexibility for electric anchoring systems.
- Description
- Ask a Question
-
Maxwell RC12-13 Vertical Electric Anchor Windlass, 24V, 1200W, 90TDC, ACW
The Maxwell RC12-13 is a vertical electric anchor windlass from the RC Series, manufactured from stainless steel and engineered for automatic rope and chain handling. This configuration is powered by a 24 V electric motor rated at 1200 W and is set for anti-clockwise (ACW) rotation. The windlass provides a total capacity rating of 90TDC and is intended for compact vertical installations without an integrated drum.
Design and Functional Features
- Vertical windlass configuration for efficient deck and below-deck installation
- Electric drive system with 24 V DC power supply
- Automatic rope and chain handling capability
- Anti-clockwise (ACW) rotation configuration
- Total capacity rating: 90TDC
- Supplied without integrated drum (no reel configuration)
- Part of the Maxwell RC12 vertical windlass series
Operational and Safety Notes
- Designed for automatic anchor deployment and retrieval
- Must be used in conjunction with a chain stopper and/or alternative snubbing device to remove load from the windlass while at anchor
- A chain stopper or snubbing system should also be used to secure the anchor in the fully raised position while underway
Compatible Rode Specifications
- Chain type: Short link anchor chain
- Maximum chain diameter: 13 mm (DIN766)
- Rode configuration: Chain or rope/chain combination depending on installation
Technical Specifications
Parameter Specification Part Number P104656 Model RC12-13 Drive Type Electric Operating Voltage 24 V DC Motor Power 1200 W Total Capacity 90 TDC Rotation Direction Anti-clockwise (ACW) Drum No Chain Compatibility 13 mm DIN766 -
