ID
1300572
$ 7,307.48
1-2 weeks delivery time
-
+
The Maxwell RC12-13 hydraulic anchor windlass (Vetus part number P104666) is a vertical stainless steel rope/chain windlass designed for automatic anchoring applications using a hydraulic drive system. This configuration features clockwise (CW) rotation and a total drum capacity rating of 190TDC. The windlass is compatible with 13 mm DIN766 short link anchor chain and is supplied without an integrated drum, providing installation flexibility for high-load hydraulic anchoring systems.
- Description
- Ask a Question
-

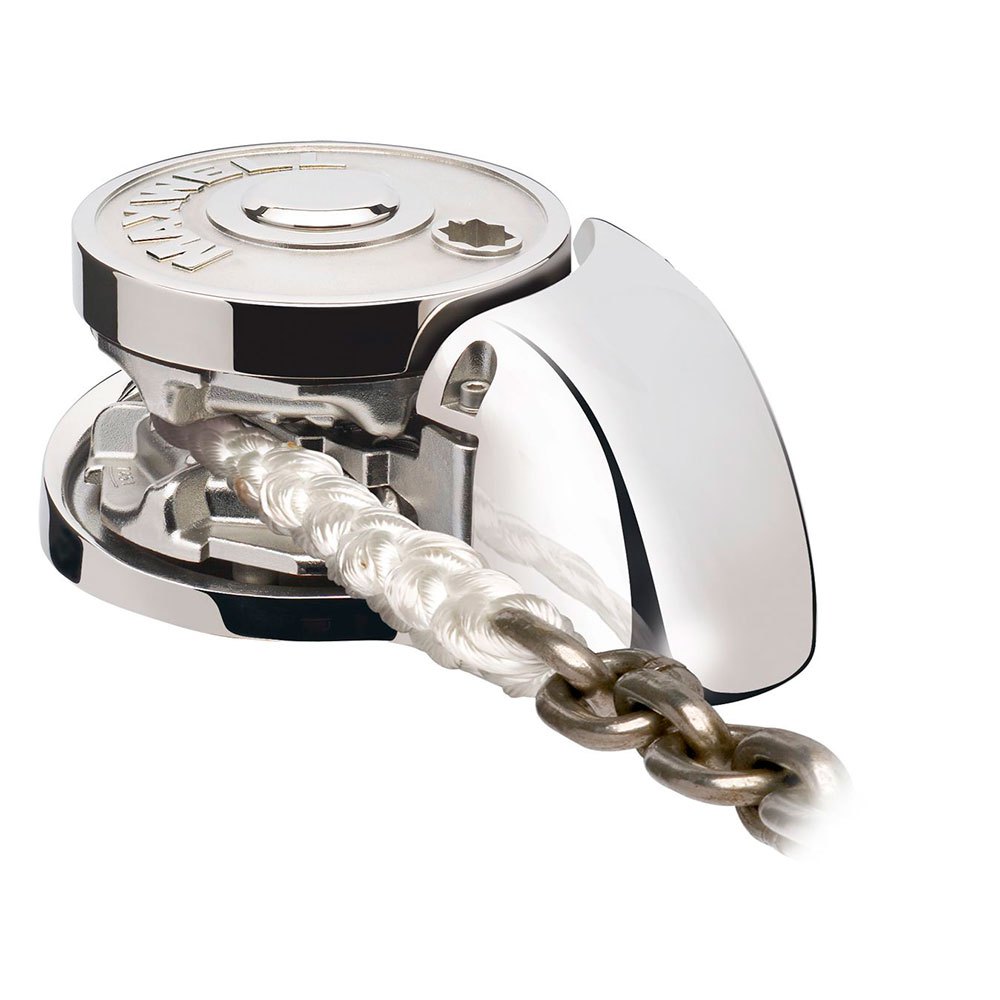

Maxwell RC12-13 Vertical Hydraulic Anchor Windlass, 190TDC, CW
The Maxwell RC12-13 is a vertical hydraulic anchor windlass from the RC Series, engineered for demanding marine anchoring applications. Manufactured from stainless steel, this model is designed for automatic rope and chain handling and utilizes a hydraulic drive system for consistent performance under load. The windlass is configured for clockwise (CW) rotation and rated with a total drum capacity of 190TDC.
Design and Functional Features
- Vertical windlass configuration for efficient deck and below-deck installation
- Hydraulic drive system suitable for continuous and high-load operation
- Automatic rope and chain handling design
- Clockwise (CW) rotation configuration
- Total Drum Capacity rating: 190TDC
- Supplied without integrated drum (no reel configuration)
- Part of the Maxwell RC12 vertical windlass series
Operational and Safety Notes
- Designed for automatic anchor deployment and retrieval using hydraulic power
- Must be used in conjunction with a chain stopper and/or alternative snubbing device to remove load from the windlass while at anchor
- A chain stopper or alternative snubbing system should also be used to secure the anchor in the fully raised position while underway
Compatible Rode Specifications
- Chain type: Short link anchor chain
- Maximum chain diameter: 13 mm (DIN766)
- Rode configuration: Chain or rope/chain combination depending on installation requirements
Technical Specifications
Parameter Specification Part Number P104666 Model RC12-13 Drive Type Hydraulic Configuration Vertical Total Drum Capacity 190 TDC Rotation Direction Clockwise (CW) Drum No Chain Compatibility 13 mm DIN766 -
