ID
1300570
$ 6,557.88
1-2 weeks delivery time
-
+

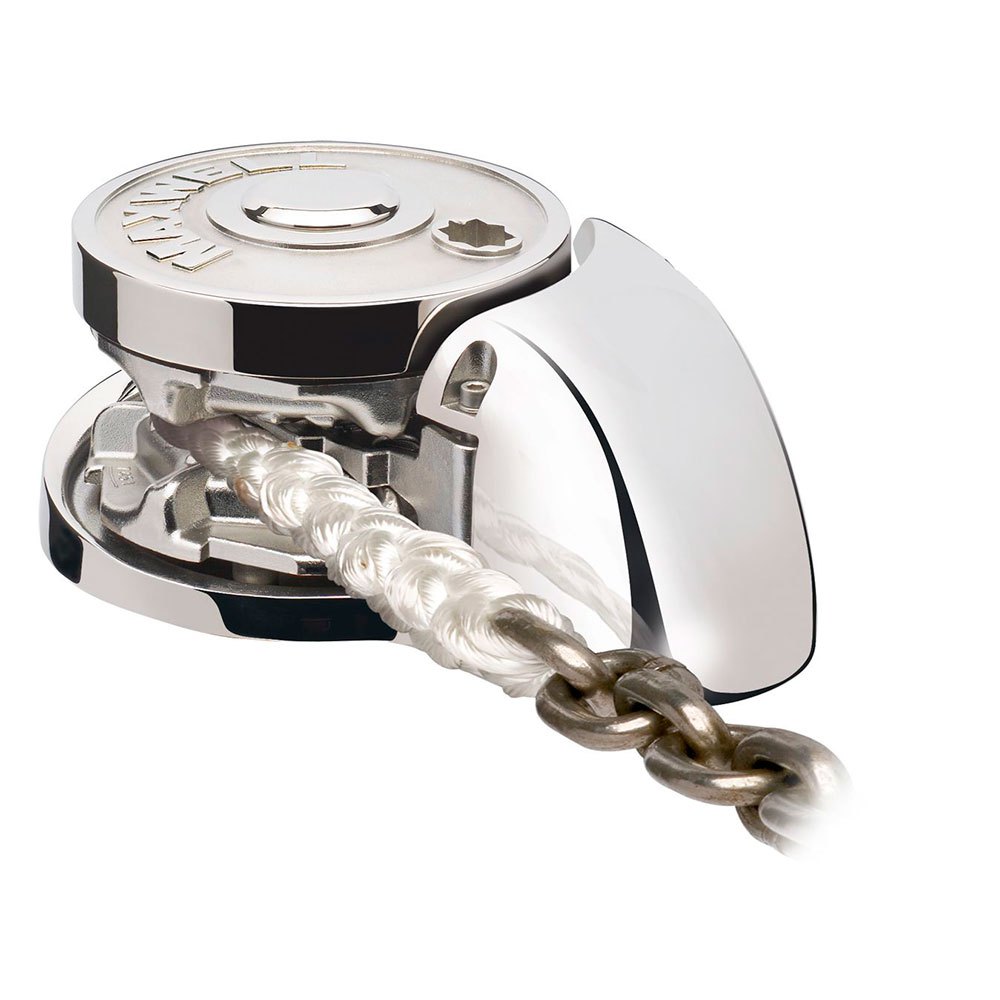

The Maxwell RC12-13 electric anchor windlass (Vetus part number P104664) is a vertical stainless steel rope/chain windlass powered by a 12V, 1200 W electric motor configured for clockwise (CW) rotation with a 190TDC total drum capacity rating. Designed for reliable automatic anchoring performance and compatible with 13 mm DIN766 short link chain, this model is supplied without a reel, offering installation flexibility for marine applications.
- Description
- Ask a Question
-
Maxwell RC12-13 Vertical Electric Anchor Windlass, 12V, 1200W, 190TDC, CW
The Maxwell RC12-13 vertical electric anchor windlass, supplied under Vetus part number P104664, is engineered for dependable automatic anchoring and mooring tasks. Powered by a 12 V electric motor rated at 1200 W and configured for clockwise (CW) rotation, this windlass features a 190TDC total rope/chain handling capacity and is compatible with 13 mm DIN766 short link chain.
Main Features
- Vertical windlass design with electric drive suitable for marine installations
- 12 V DC electric motor with 1200 W output
- Clockwise (CW) rotation configuration
- Total Drum Capacity (TDC): 190TDC
- Designed for automatic deployment and retrieval of rope/chain rode
- Supplied without integrated reel for installation versatility
- Part of the Maxwell RC12 Series of windlasses
Anchoring Operation Notes
- Compatible with 13 mm DIN766 short link anchor chain
- Recommended for use with a chain stopper and/or snubbing device to take load off the windlass when at anchor
Technical Specifications
Parameter Specification Part Number P104664 Model RC12-13 Drive Type Electric Operating Voltage 12 V DC Motor Power 1200 W Total Drum Capacity 190 TDC Rotation Direction Clockwise (CW) Drum No Chain Compatibility 13 mm DIN766 -
