$ 6,958.61
1-2 weeks delivery time
-
+

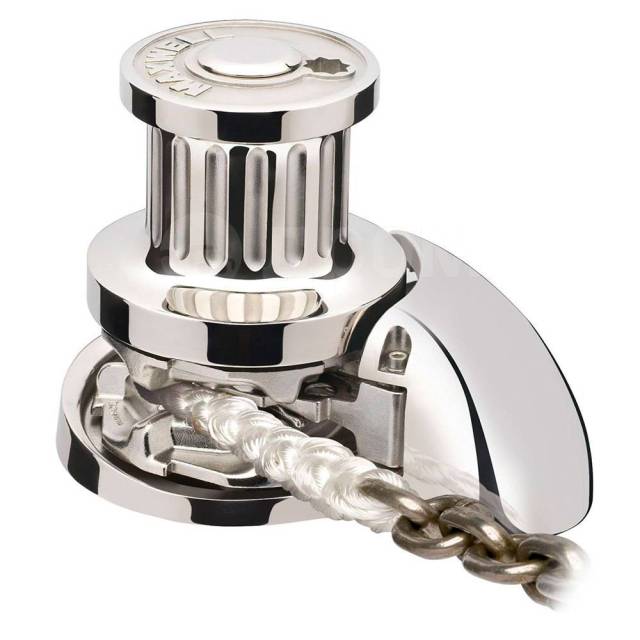

The Maxwell RC12-13 vertical electric anchor windlass (Vetus part number P104659) is a stainless steel automatic windlass powered by a 24 V, 1200 W electric drive with clockwise (CW) rotation and a total drum capacity of 90 TDC. Equipped with an integrated drum for rope and chain handling and compatible with 13 mm DIN766 anchor chain, this model delivers dependable anchoring performance and controlled line deployment for marine applications.
- Description
- Ask a Question
-
Maxwell RC12-13 Vertical Electric Anchor Windlass, 24V, 1200W, 90TDC, CW, with Drum
The Maxwell RC12-13 vertical electric anchor windlass, supplied under Vetus part number P104659, is engineered for reliable automatic anchoring and mooring operations. Powered by a 24 V electric motor with a 1200 W output and configured for clockwise (CW) rotation, this windlass features a 90 TDC total drum capacity and includes an integrated drum for effective rope and chain management.
Main Features
- Vertical windlass configuration suitable for deck and below-deck installation
- Electric drive system with 24 V DC power
- 1200 W motor for consistent anchoring performance
- Clockwise (CW) rotation for standard anchoring arrangements
- Total Drum Capacity: 90 TDC
- Integrated drum for combined rope and chain handling
- Designed for automatic anchor deployment and retrieval
Anchoring and Installation Notes
- Compatible with 13 mm DIN766 short link anchor chain
- Recommended for use with chain stoppers or snubbing devices to remove load from the windlass when at anchor
Technical Specifications
Parameter Specification Part Number P104659 Model RC12-13 Drive Type Electric Operating Voltage 24 V DC Motor Power 1200 W Total Drum Capacity 90 TDC Rotation Direction Clockwise (CW) Drum Yes Chain Compatibility 13 mm DIN766 -
