ID
1300585
$ 7,800.49
1-2 weeks delivery time
-
+
The Maxwell RC12-13 hydraulic anchor windlass (Vetus part number P104675) is a vertical stainless steel automatic windlass powered by a hydraulic drive system with anti-clockwise (ACW) rotation and a total capacity rating of 190TDC. Equipped with an integrated drum for combined rope and chain handling and compatible with 13 mm DIN766 short link anchor chain, this model provides reliable performance for demanding marine anchoring tasks.
- Description
- Ask a Question
-

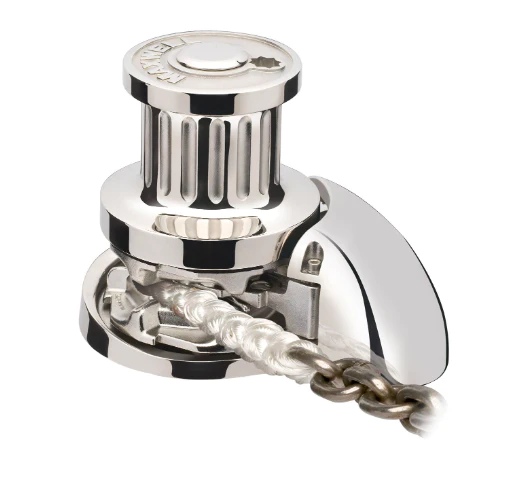

Maxwell RC12-13 Vertical Hydraulic Anchor Windlass, 190TDC, ACW, with Drum
The Maxwell RC12-13 hydraulic anchor windlass, supplied under Vetus part number P104675, is engineered for dependable anchoring and mooring operations in marine environments. This vertical windlass utilizes a hydraulic drive system and is configured for anti-clockwise (ACW) rotation. Rated with a total drum capacity of 190TDC and equipped with an integrated drum, it enables efficient rope and chain management for automatic anchoring tasks.
Design and Functional Features
- Vertical windlass configuration for deck and below-deck installation
- Hydraulic drive system providing high-load anchoring performance
- Automatic rope and chain handling capability
- Anti-clockwise (ACW) rotation configuration
- Total Drum Capacity rating: 190TDC
- Integrated drum for combined rope and chain handling
- Part of the Maxwell RC12 automatic rope/chain windlass series
Operational and Safety Notes
- Designed for automatic anchor deployment and retrieval under hydraulic power
- Recommended use with a chain stopper and/or snubbing device to take load off the windlass while at anchor
- A chain stopper or alternative snubbing system should also be used to secure the anchor in the fully raised position while underway
Compatible Rode Specifications
- Chain type: Short link anchor chain
- Maximum chain diameter: 13 mm (DIN766)
- Rode configuration: Rope / chain combination depending on installation requirements
Technical Specifications
Parameter Specification Part Number P104675 Model RC12-13 Drive Type Hydraulic Configuration Vertical Total Drum Capacity 190 TDC Rotation Direction Anti-clockwise (ACW) Drum Yes Chain Compatibility 13 mm DIN766 short link chain Power Rating 1200 W (hydraulic equivalent) -
