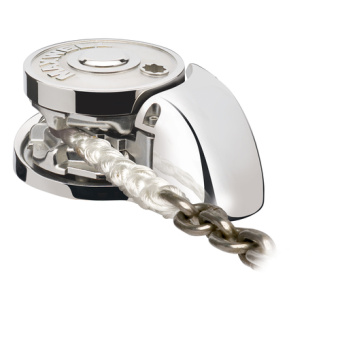

The Maxwell RC12-HD heavy duty electric anchor windlass (Vetus part number P105402) is a vertical stainless steel rope/chain windlass powered by a 24 V, 2000 W electric motor and configured for clockwise (CW) rotation. Designed for demanding anchoring applications, this model is rated at 100TDC and optimized for use with 10 mm short link anchor chain. Supplied without an integrated drum, it is intended for heavy-duty marine installations requiring high power and extended duty cycles.
- Description
- Ask a Question
-
Maxwell RC12-HD Heavy Duty Vertical Electric Anchor Windlass, 10 mm Chain, 24V, 2000W, 100TDC, CW
The Maxwell RC12-HD is a heavy duty vertical electric anchor windlass engineered for high-load and extended-use anchoring operations. Supplied under Vetus part number P105402, this model is powered by a 24 V DC electric motor rated at 2000 W and configured for clockwise (CW) rotation. The RC12-HD series represents an upgraded, reinforced version of the standard RC12 windlass, developed for demanding marine and commercial applications.
Design and Functional Features
- Heavy duty vertical windlass configuration for professional and high-load installations
- 24 V DC electric drive with high-power 2000 W motor
- Clockwise (CW) rotation configuration
- Total capacity rating: 100TDC
- Optimized for short link anchor chain handling
- Supplied without integrated drum (no reel configuration)
- Part of the Maxwell RC12-HD Heavy Duty windlass series
Operational and Application Notes
- Designed for continuous-duty and high-load anchoring operations
- Suitable for demanding marine and commercial vessel applications
- Recommended use with a chain stopper or alternative snubbing device to remove load from the windlass while anchored
- A chain stopper or snubbing system should also secure the anchor in the fully raised position while underway
Compatible Rode Specifications
- Chain type: Short link anchor chain
- Nominal chain diameter: 10 mm
- Rode configuration: Chain or rope/chain combination depending on installation
Technical Specifications
Parameter Specification Part Number P105402 Model RC12-HD Series Type Heavy Duty Drive Type Electric Operating Voltage 24 V DC Motor Power 2000 W Total Drum Capacity 100 TDC Rotation Direction Clockwise (CW) Drum No Chain Compatibility 10 mm short link chain -
