ID
1300584
$ 7,050.89
1-2 weeks delivery time
-
+

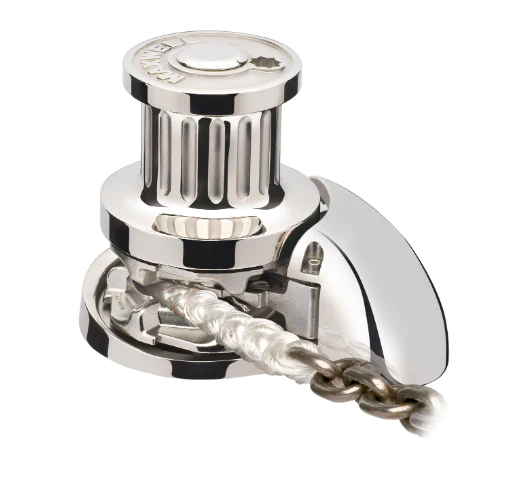

The Maxwell RC12-12 electric anchor windlass (Vetus part number P104674) is a vertical stainless steel rope and chain windlass powered by a 24 V, 1200 W electric drive configured for anti-clockwise (ACW) rotation. Rated at 190TDC and supplied with an integrated drum, this model is designed for efficient and reliable automatic anchoring operations with 13 mm DIN766 short link chain.
- Description
- Ask a Question
-
Maxwell RC12-12 Electric Anchor Windlass, 24V, 1200W, 190TDC, ACW, with Drum
The Maxwell RC12-12 anchor windlass, supplied under Vetus part number P104674, is engineered for dependable automatic anchoring and mooring performance. This vertical electric windlass features a 24 V DC motor with 1200 W output and is configured for anti-clockwise (ACW) rotation. With a 190TDC total capacity rating and integrated drum for controlled rope and chain handling, this model provides robust performance for marine anchoring applications.
Design and Functional Features
- Vertical windlass configuration with integrated drum for rope and chain handling
- Electric drive system with 24 V DC power supply
- Automatic rope and chain handling capability
- Anti-clockwise (ACW) rotation configuration
- Total capacity rating: 190TDC
- Designed for automatic anchor deployment and retrieval
- Part of the Maxwell RC12 Series of windlasses
Operational and Safety Notes
- Designed for controlled automatic anchor deployment and retrieval
- Recommended for use with chain stoppers or snubbing devices to take load off the windlass while at anchor
- A chain stopper or snubbing system should also secure the anchor in the fully raised position while underway
Compatible Rode Specifications
- Chain type: Short link anchor chain
- Maximum chain diameter: 13 mm (DIN766)
- Rode configuration: Rope/chain combination depending on installation
Technical Specifications
Parameter Specification Part Number P104674 Model RC12-12 Drive Type Electric Operating Voltage 24 V DC Motor Power 1200 W Total Capacity 190 TDC Rotation Direction Anti-clockwise (ACW) Drum Yes Chain Compatibility 13 mm DIN766 short link chain -
