ID
1300583
$ 7,050.89
1-2 weeks delivery time
-
+
The Maxwell RC12-13 vertical electric anchor windlass (Vetus part number P104673) is a robust marine anchoring system powered by a 12 V, 1200 W electric drive with anti-clockwise (ACW) rotation and a total drum capacity of 190TDC. Designed for reliable automatic anchor deployment and retrieval, this windlass includes an integrated drum and is compatible with 13 mm DIN766 short link anchor chain for efficient rope and chain handling in demanding maritime conditions.
- Description
- Ask a Question
-

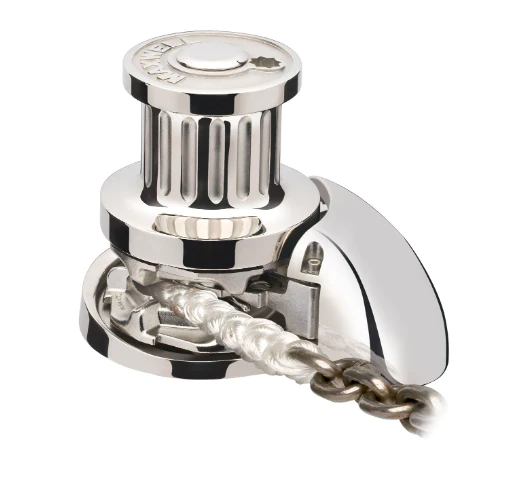

Maxwell RC12-13 Vertical Electric Anchor Windlass, 12V, 1200W, 190TDC, ACW, with Drum
The Maxwell RC12-13 vertical electric anchor windlass, supplied under Vetus part number P104673, is engineered for dependable anchoring and mooring operations. This model features a 12 V electric motor rated at 1200 W and is configured for anti-clockwise (ACW) rotation. With a total drum capacity rating of 190TDC and an integrated drum for combined rope and chain handling, this windlass provides the performance and control required for automatic anchor deployment and retrieval.
Design and Functional Features
- Vertical windlass configuration for efficient deck and below-deck electric drive installation
- 12 V DC electric drive system with 1200 W motor
- Automatic rope and chain handling capability
- Anti-clockwise (ACW) rotation configuration
- Total drum capacity: 190TDC
- Integrated drum for enhanced rope and chain control
- Part of the Maxwell RC12 automatic rope/chain windlass series
Operational and Safety Notes
- Designed for automatic anchor deployment and retrieval under electric power
- Recommended for use with chain stoppers or snubbing devices to remove load from the windlass while at anchor
- Chain stoppers or snubbing systems should also secure the anchor in the fully raised position while underway
Compatible Rode Specifications
- Chain type: Short link anchor chain
- Maximum chain diameter: 13 mm (DIN766)
- Rode configuration: Rope/chain combination depending on installation
Technical Specifications
Parameter Specification Part Number P104673 Model RC12-13 Drive Type Electric Operating Voltage 12 V DC Motor Power 1200 W Total Drum Capacity 190 TDC Rotation Direction Anti-clockwise (ACW) Drum Yes Chain Compatibility 13 mm DIN766 short link chain -
