The Maxwell RC12-13 vertical electric anchor windlass (Vetus part number P104658) is a powerful anchoring solution featuring a 12 V, 1200 W electric drive with clockwise (CW) rotation and a 90 TDC total drum capacity. Equipped with a drum for controlled rope and chain management and compatible with 13 mm DIN766 anchor chain, this model is designed for reliable automatic anchoring and mooring operations on vessels requiring a compact vertical installation.
- Description
- Ask a Question
-

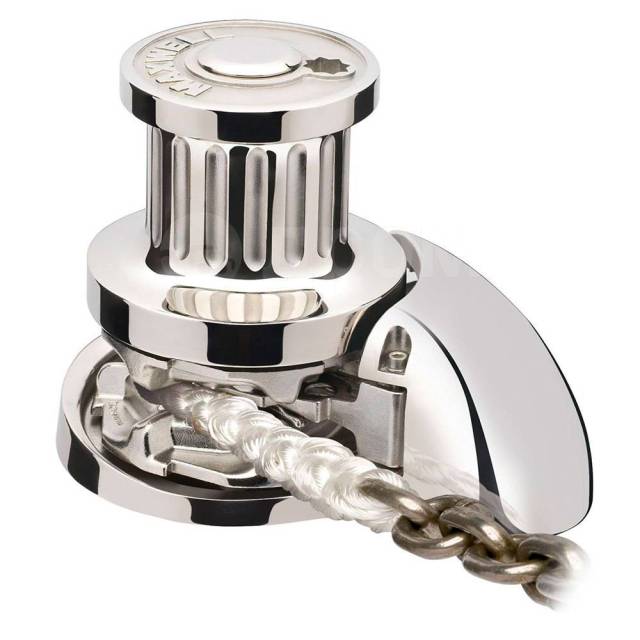

Maxwell RC12-13 Vertical Electric Anchor Windlass, 12V, 1200W, 90TDC, CW, with Drum
The Maxwell RC12-13 vertical electric anchor windlass, supplied under Vetus part number P104658, is engineered for dependable anchoring and mooring performance. Powered by a 12 V electric motor rated at 1200 W, this windlass features clockwise (CW) rotation and a total drum capacity of 90 TDC. The included drum facilitates convenient handling of rope and chain combinations, improving line management and operational control.
Key Functional Features
- Vertical windlass configuration suitable for electric drive installations
- 12 V DC electric motor with 1200 W power rating
- Clockwise (CW) rotation
- Total Drum Capacity: 90 TDC
- Equipped with integrated drum for rope and chain handling
- Part of Maxwell RC12 vertical rope/chain windlass series
Anchoring Operation Notes
- Designed for automatic deployment and retrieval of anchor rode
- Compatible with 13 mm DIN766 short link chain
- Recommended use with chain stopper or snubbing device to take load off windlass when anchored
Technical Specifications
Parameter Specification Part Number P104658 Model RC12-13 Drive Type Electric Operating Voltage 12 V DC Motor Power 1200 W Total Drum Capacity 90 TDC Rotation Direction Clockwise (CW) Drum Yes Chain Compatibility 13 mm DIN766 -
