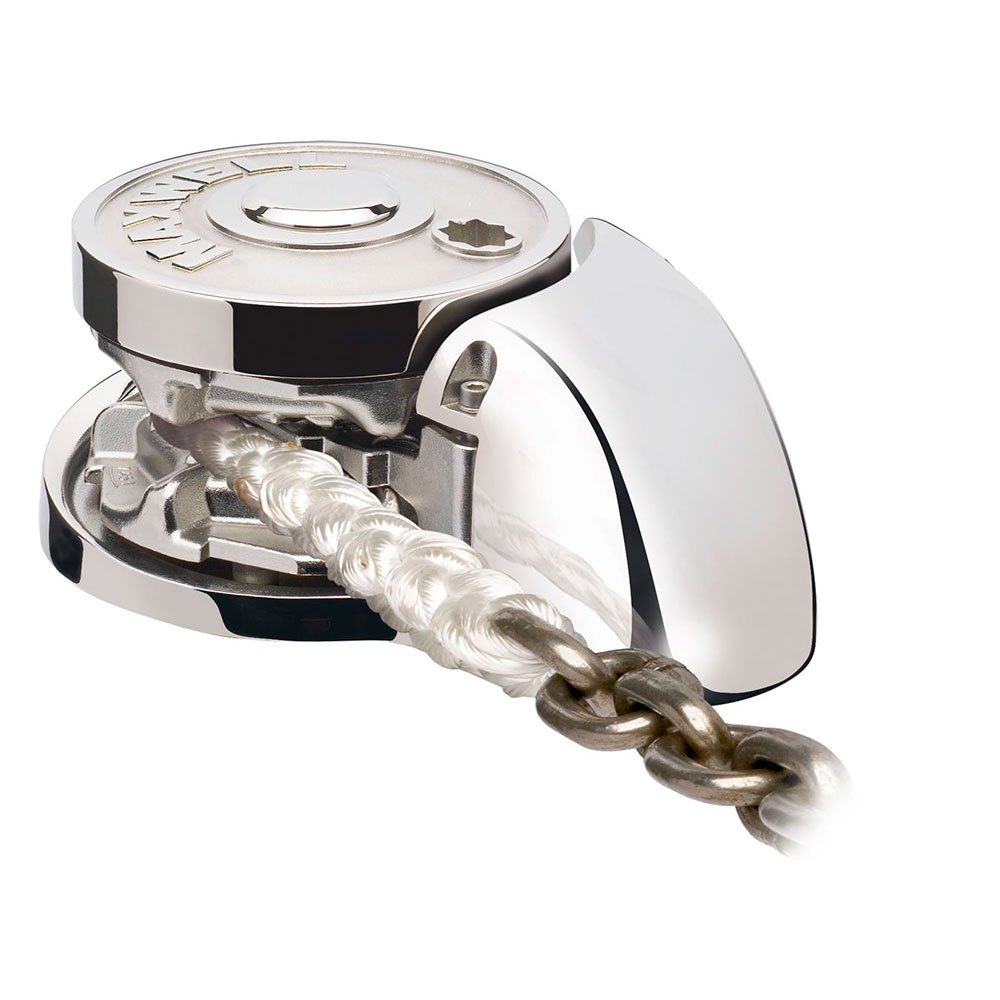

The Maxwell RC12-13 vertical electric anchor windlass (Vetus part number P104653) is a robust stainless steel rope/chain windlass powered by a 24-volt, 1200 W electric motor configured for clockwise (CW) rotation with a total drum capacity of 90 TDC. Designed for automatic anchoring and mooring use, it features compatibility with 13 mm DIN766 chain and represents a powerful and reliable solution within the RC12 vertical windlass series.
- Description
- Ask a Question
-
Maxwell RC12-13 Vertical Electric Anchor Windlass, 24V, 1200W, 90TDC, CW
The Maxwell RC12-13 vertical electric anchor windlass, supplied under Vetus part number P104653, is a high-performance stainless steel automatic windlass designed for anchoring and mooring applications. This model is equipped with a 24 V 1200 W electric drive and configured for clockwise (CW) operation. With a total drum capacity rating of 90 TDC, the RC12-13 delivers reliable power and controlled line handling in a vertical installation format.
Key Features
- Vertical windlass configuration with electric drive
- Clockwise (CW) rotation suited for specific deck arrangements
- Total Drum Capacity (TDC): 90 TDC for combined rope/chain rode
- Designed for automatic anchor deployment and retrieval
- Robust stainless steel construction for marine environments
- Part of the proven RC12 vertical windlass series
Anchoring Operation Notes
- Suitable for use in both anchoring and mooring applications
- Windlass accepts 13 mm DIN766 short link chain
- Recommended for use with appropriate chain stoppers or snubbing devices to take load off the windlass when anchored
Technical Specifications
Parameter Specification Part Number P104653 Model RC12-13 Drive Type Electric Operating Voltage 24 V Motor Power 1200 W Total Drum Capacity 90 TDC Rotation Direction Clockwise (CW) Chain Compatibility 13 mm DIN766 -
