The Maxwell RC12-12 hydraulic anchor windlass (part number P104953) is a vertical stainless steel rope/chain windlass with integrated drum, designed for automatic anchoring operations. This hydraulic model delivers a maximum pull of 1590 kg and weighs 26 kg. It is suitable for combined rope and chain rodes, accommodating 10 mm (3/8") chain and nylon rope with diameters from 16 mm to 20 mm (5/8" to 3/4"), making it suitable for demanding anchoring applications where hydraulic drive systems are used.
- Description
- Ask a Question
-

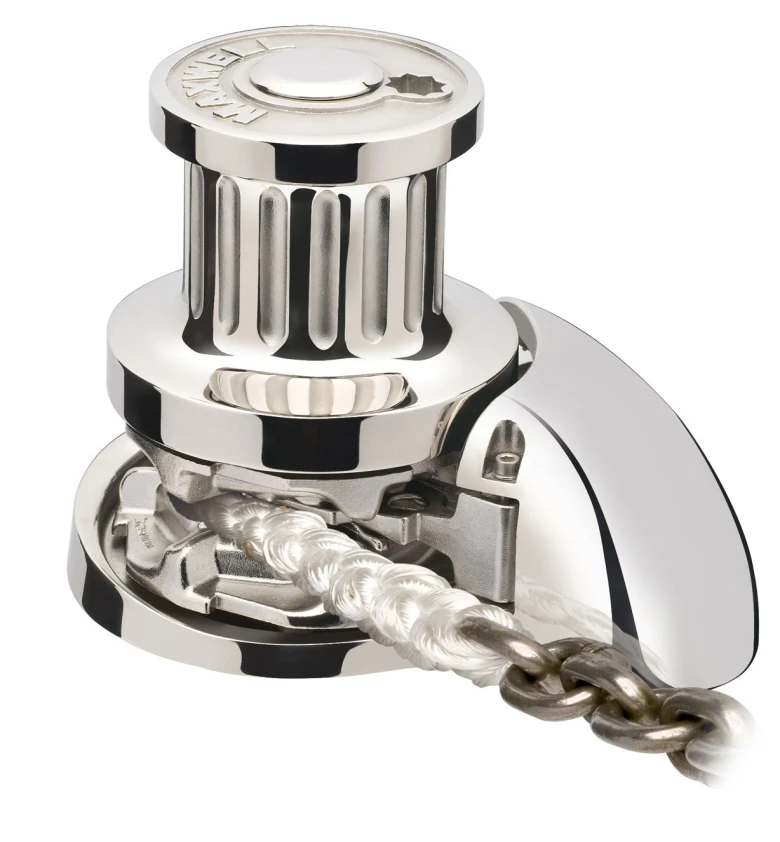

Maxwell RC12-12 Vertical Hydraulic Anchor Windlass with Drum
The Maxwell RC12-12 is a premium stainless steel hydraulic rope/chain anchor windlass and represents the top-range model within the vertical RC Series. Designed for fully automatic handling of rope and chain rodes, the unit features an integrated drum and a vertical configuration for efficient deck installation and controlled anchoring performance.
Design and Functional Features
- Vertical configuration suitable for hydraulic drive systems
- Automatic rope and chain handling capability
- Integrated drum for controlled rope management
- Ratcheted mechanism lever prevents backwinding during emergency manual retrieval of rope and/or chain
- Designed for fully automatic dual-direction control
- Supplied as a complete package with components required for automatic operation
Operational Safety Notes
- Must be used in conjunction with a chain stopper and/or alternative snubbing device to remove load from the windlass while at anchor
- A chain stopper or alternative snubbing system must also be used to secure the anchor in the fully raised position while underway
Compatible Rode Specifications
- Chain type: Short link chain
- Chain diameter: 10 mm (3/8"), compatible with 12–13 mm chain sizes
- Rope type: Nylon rope
- Rope diameter: 16 mm to 20 mm (5/8" to 3/4")
Technical Specifications
Parameter Specification Drive Type Hydraulic Operating Voltage 0 V Configuration Vertical Rode Type Rope / Chain Drum Yes Maximum Pull / Lift 1590 kg Chain Size 12–13 mm Maximum Rope Diameter 20 mm Weight 26 kg -
