ID
1300567
$ 6,464.94
1-2 weeks delivery time
-
+

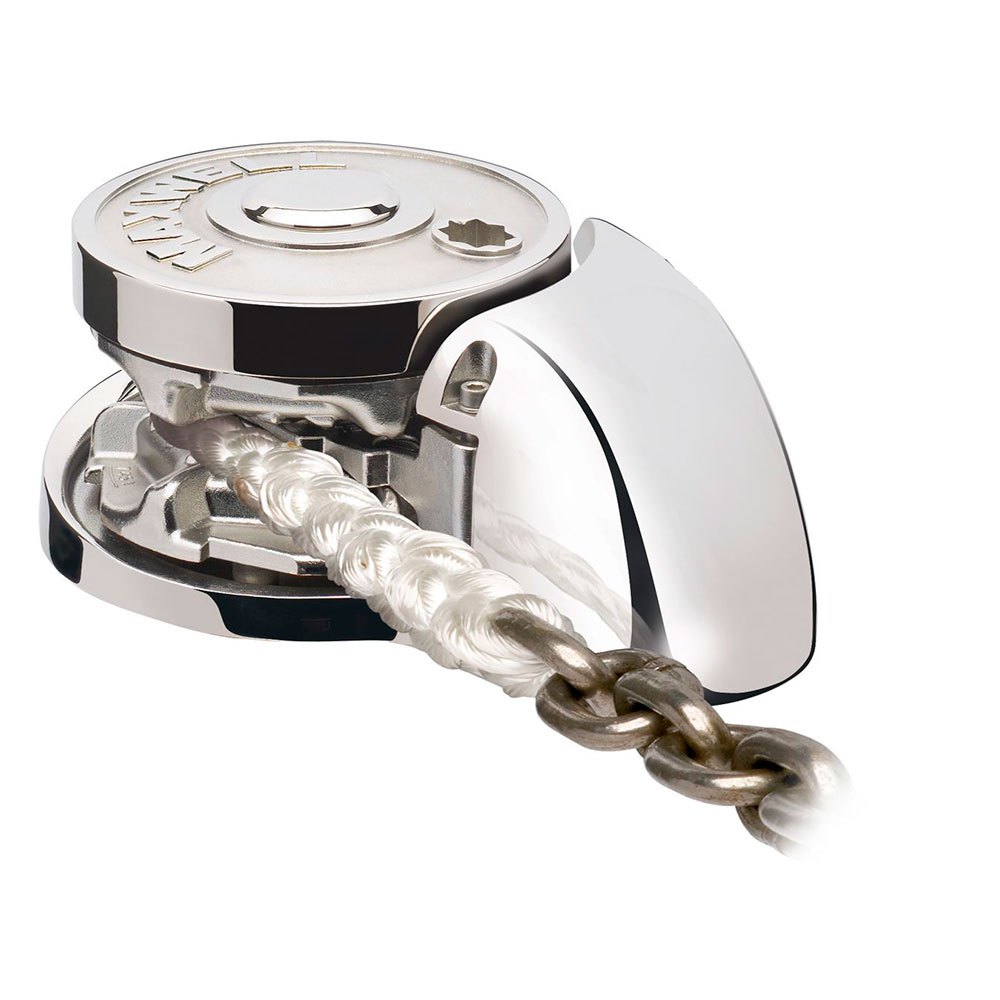

The Maxwell RC12-13 electric anchor windlass (part number P104652) is a vertical stainless steel rope/chain windlass powered by a 12V electric motor with an output of 1200W. This configuration features a total drum capacity of 90TDC and clockwise (CW) rotation. Designed as part of the RC12 vertical windlass series, it is intended for automatic anchoring operations requiring controlled electric drive and compact vertical installation.
- Description
- Ask a Question
-
Maxwell RC12-13 Vertical Electric Anchor Windlass, 12V, 1200W, 90TDC
The Maxwell RC12-13 is a vertical electric anchor windlass from the RC Series, manufactured from stainless steel and designed for automatic rope and chain handling. This version is equipped with a 12V electric motor rated at 1200W and configured with clockwise (CW) rotation. The windlass features a total drum capacity of 90TDC and is intended for vertical deck installation where efficient below-deck motor placement is required.
Design and Functional Characteristics
- Vertical windlass configuration
- Electric drive system
- Automatic rope and chain handling design
- Clockwise (CW) rotation configuration
- Total drum capacity: 90TDC
- Part of the Maxwell RC12 windlass series
Operational Notes
- Designed for automatic anchoring operations
- Vertical configuration allows compact deck layout and below-deck motor positioning
Technical Specifications
Parameter Specification Part Number P104652 Model RC12-13 Drive Type Electric Operating Voltage 12 V Motor Power 1200 W Configuration Vertical Total Drum Capacity 90 TDC Rotation Direction Clockwise (CW) -
