Maxwell VWC Series Vertical Windlass VWCLP, article P100432, is a 12V vertical anchor windlass powered by a 1200W motor, designed for automatic handling of chain-only anchor rodes. The unit features an independent capstan for retrieving a secondary rope or chain rode or for assisting docking procedures, supports short link chain sizes from 6 to 10 mm, and provides a maximum pull of 850 kg.
- Description
- Ask a Question
-

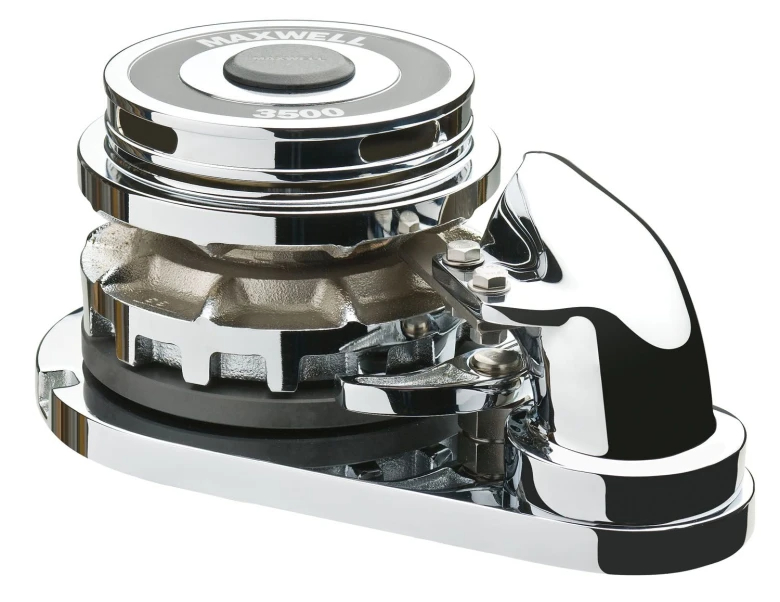

Maxwell VWC Series Vertical Windlass 1200W 12V with Independent Capstan (150TDC CW)
The Maxwell VWC Series vertical windlass is designed for fully automatic vertical handling of chain-only anchor rodes while incorporating an independent capstan for secondary rope or chain retrieval. This configuration also supports docking procedures by allowing controlled rope hauling from any direction. The windlass combines robust mechanical design with corrosion-resistant materials for reliable operation in marine environments.
Key Features
- Automatic vertical handling of chain-only anchor rodes
- Independent capstan for secondary rope or chain retrieval and docking assistance
- Fully automatic single or dual direction chainwheel operation
- Above-deck components manufactured from marine-grade stainless steel (AISI 316)
- Integral chain pipe and stripper aligned for virtually jam-free chain operation
- Automatic feed of chain into and out of the anchor locker
- Cone-type brake and clutch mechanism permitting manual free-fall anchoring
- Smooth progressive clutch engagement for safe and precise operator control
- Chainwheel locking pawl for secure anchoring operation
- Clutch disengagement enables independent rope hauling using the capstan
- Simple through-deck installation enabled by modular design
- Precise alignment of gearbox to topworks using marine-grade stainless steel fasteners
- Anodized aluminium gearbox and spacer tube on all models
- Heavy-duty dual direction motor designed for marine winch applications
- Low-profile configuration available without warping drum
Technical Specifications
Parameter Value Article Number P100432 Motor Power 1200 W Voltage 12 V Configuration Vertical Rode Type Chain Warping Drum No Maximum Pull / Lift 850 kg Supported Chain Size 6 – 10 mm (short link)
Construction and Installation
- Marine-grade stainless steel fasteners for enhanced corrosion resistance
- Through-deck installation with modular alignment of gearbox and topworks
- Robust mechanical construction suitable for demanding marine environments
-
