ID
1300713
$ 3,900.93
1-2 weeks delivery time
-
+
The Vetus P100436 – Maxwell 1000 VWLP is a 24 V, 1000 W low-profile vertical anchor windlass with 50 TDC deck clearance, designed for rope and chain combination anchor rodes. Built for sailing boats with limited anchor locker space, this model delivers dependable anchoring performance with 6–8 mm chain compatibility and a compact vertical installation.
- Description
- Ask a Question
-

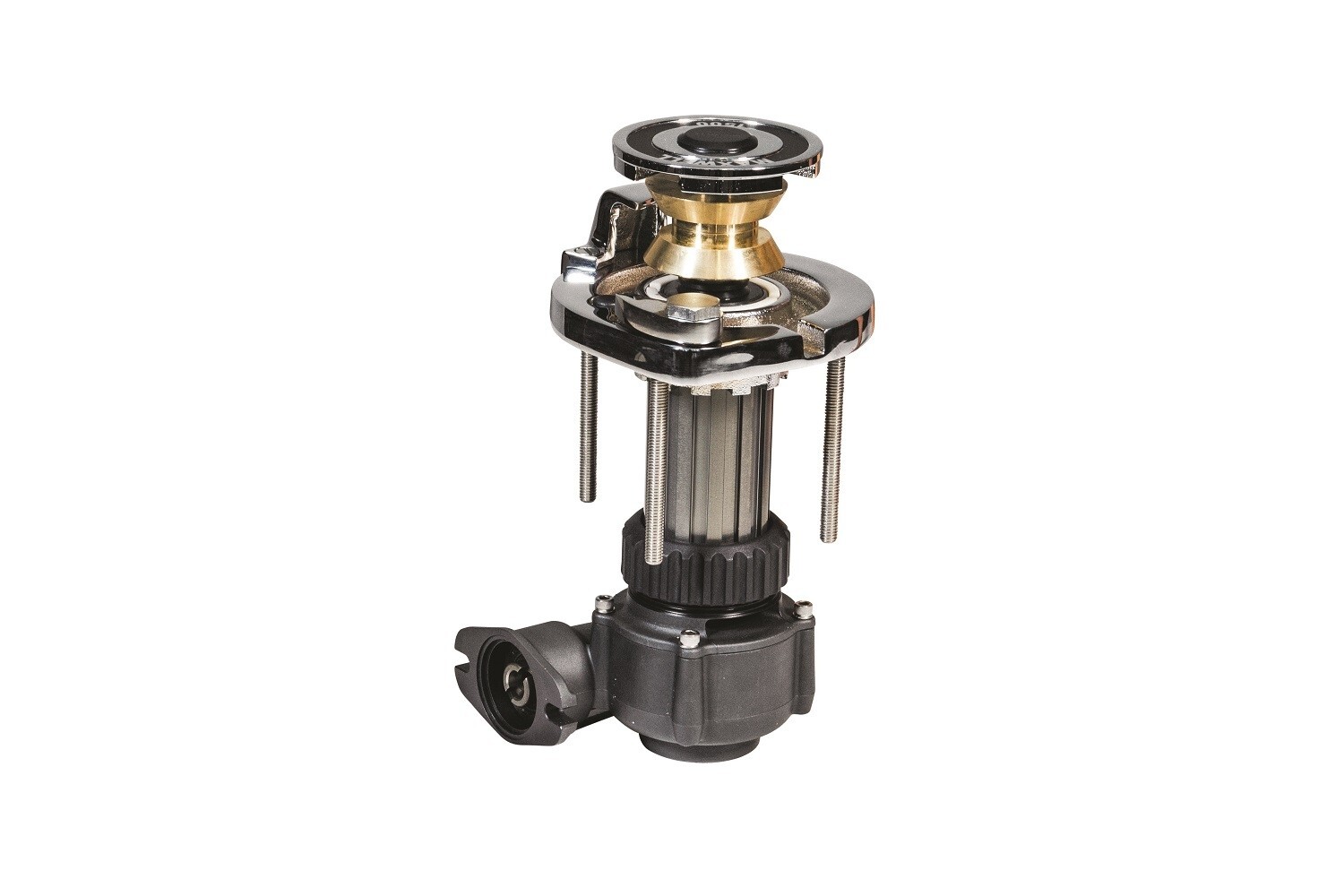

Vetus P100436 – Maxwell 1000 VWLP Vertical Anchor Windlass 24V 1000W
The Vetus P100436 – Maxwell 1000 VWLP is a robust 24 V, 1000 W vertical anchor windlass featuring a low-profile (VWLP) configuration and 50 TDC total deck clearance. Part of the VW Series, it is engineered for traditional rope and chain combination anchor rodes and is ideal for installations with limited anchor locker space on sailing vessels.
Specification Value Product Code Vetus P100436 Series Maxwell VWLP Series Motor Power 1000 W Voltage 24 V DC Windlass Orientation Vertical Low Profile Yes (VWLP) Total Deck Clearance (TDC) 50 mm Weight Approx. 22 kg Maximum Pull / Lift Approx. 700 kg Chain Size 6 – 8 mm Rode Type Rope / Chain Combination Drum No Installation Vertical mounting with optional horizontal bulkhead install
Design and Functional Features
- Low-profile (VWLP) design reduces above-deck height for compact installations
- Designed for traditional rope and chain combination anchor rodes
- Allows operation of two anchors from a single windlass
- Independent MAX-grip™ design enables functional rope handling from any direction
- Clutch disengagement for precise control of rope and chain handling
- Permits use of traditional shackle and thimble rope-to-chain connections
Construction and Materials
- Above-deck components manufactured from marine-grade stainless steel (AISI 316)
- Chromed bronze components for improved corrosion resistance
- Anodized aluminium gearbox and spacer for enhanced durability
- Marine-grade stainless steel fasteners ensure secure through-deck installation
Operational and Installation Details
- Cone-type brake and clutch mechanism enables controlled manual free-fall anchoring
- Smooth, progressive clutch engagement provides safe operator control
- Chainwheel locking pawl for enhanced safety and control
- Modular design simplifies deck installation and gearbox alignment
- Designed for easy disassembly and servicing when required
-
