ID
1300714
$ 4,567.01
1-2 weeks delivery time
-
+
The Vetus P100437 – Maxwell 1000 VWLP is a hydraulic vertical anchor windlass with a low-profile configuration and 50 TDC deck clearance, designed for rope and chain combination anchor rodes. Intended for sailing boats with limited anchor locker space, this hydraulic model supports manual rope-to-chain transfer, controlled free-fall anchoring, and reliable handling of 6–8 mm chain in compact marine installations.
- Description
- Ask a Question
-

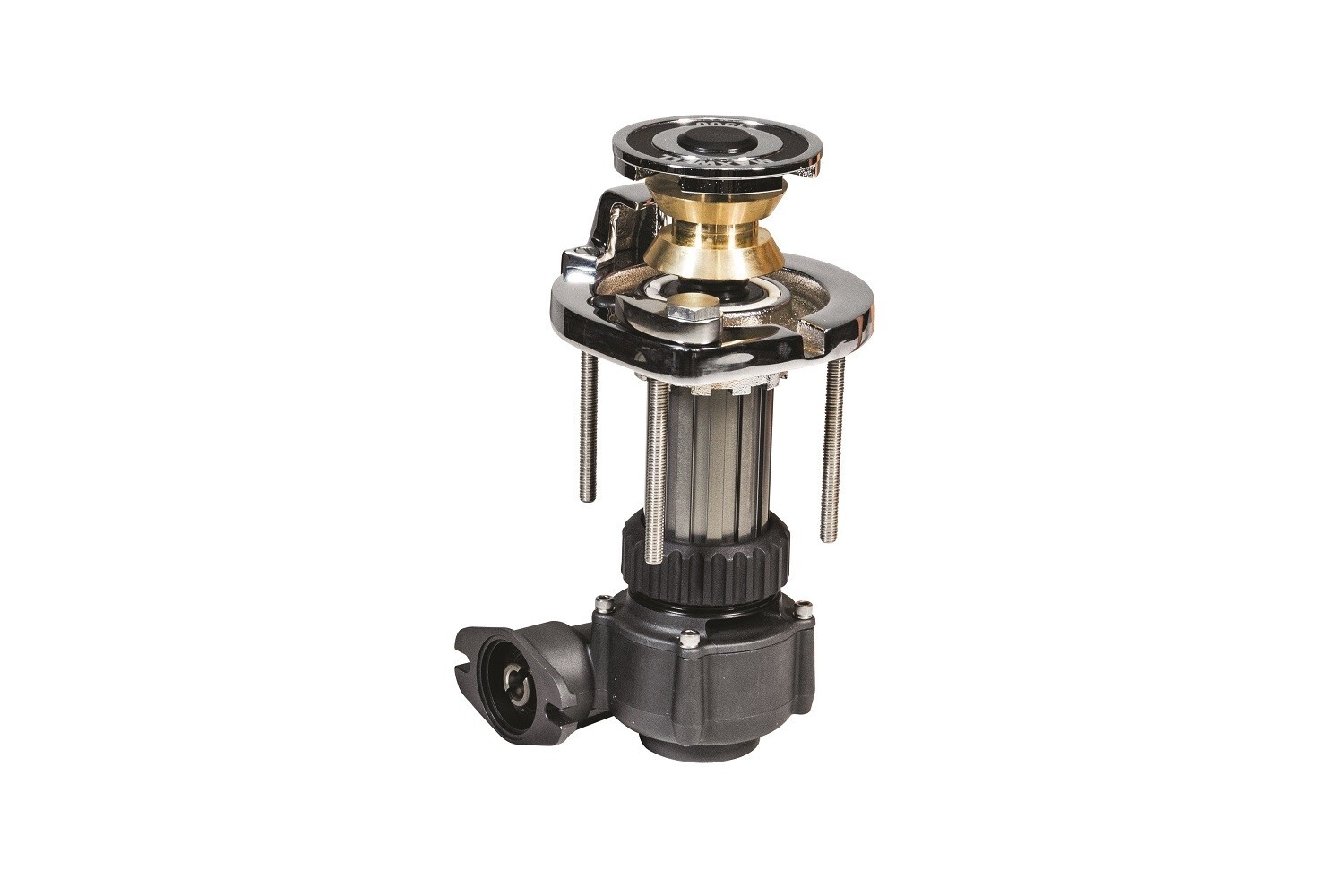

Vetus P100437 – Maxwell 1000 VWLP Hydraulic Vertical Anchor Windlass
The Maxwell 1000 VWLP hydraulic anchor windlass is part of the VW Series and features a low-profile (VWLP) design intended for installations where reduced above-deck height is required. It is engineered for traditional rope and chain combination anchor rodes, where manual transfer of the rode from the rope warping drum to the chainwheel is required. The compact 50TDC configuration makes it suitable for sailing boat anchor lockers with limited available space.
Specification Value Product Code Vetus P100437 Series Maxwell VW Series (VWLP) Drive Type Hydraulic Windlass Orientation Vertical Rode Type Rope / Chain Combination Warping Drum No Total Deck Clearance (TDC) 50 mm Weight 22 kg Maximum Pull / Lift 700 kg Chain Size 6 – 8 mm
Design and Functional Features
- Low-profile (VWLP) vertical windlass design for reduced above-deck height
- Designed for traditional rope and chain anchor rodes with manual transfer
- Provides versatility to operate two anchors from a single windlass
- Chainwheel clutch disengagement allows positive control of rope and chain
- Permits the use of traditional shackle and thimble rope-to-chain connections
Construction and Materials
- Above-deck components manufactured from marine-grade stainless steel (AISI 316)
- Chromed bronze components for long-term corrosion resistance
- Anodized aluminium gearbox and spacer for durability and reduced weight
- Marine-grade stainless steel (AISI 316) fasteners for secure through-deck installation
Operational and Installation Details
- Cone-type brake and clutch mechanism enables controlled manual free-fall anchoring
- Smooth, progressive clutch engagement ensures safe and precise operator control
- Chainwheel locking pawl included (except on VW500 and VW10 models)
- Hydraulic drive system designed specifically for marine winch applications
- Modular construction simplifies installation and ensures precise gearbox alignment
- Allows alternative horizontal mounting on a fore-and-aft bulkhead for below-deck installation
- Windlass can be easily disassembled for servicing and routine maintenance
-
