ID
1282102
$ 4,584.53
1-2 weeks delivery time
-
+
The Maxwell VW 1500 hydraulic anchor windlass with drum (article Vetus P102777) is a hydraulic vertical windlass designed for traditional rope and chain anchor rodes with manual transfer to the chainwheel. Featuring a 50TDC rope/chain configuration and integrated warping drum, it supports 6–10 mm chain handling and offers smooth, reliable anchoring performance across marine applications, ideal for sailing and motor vessels.
- Description
- Ask a Question
-

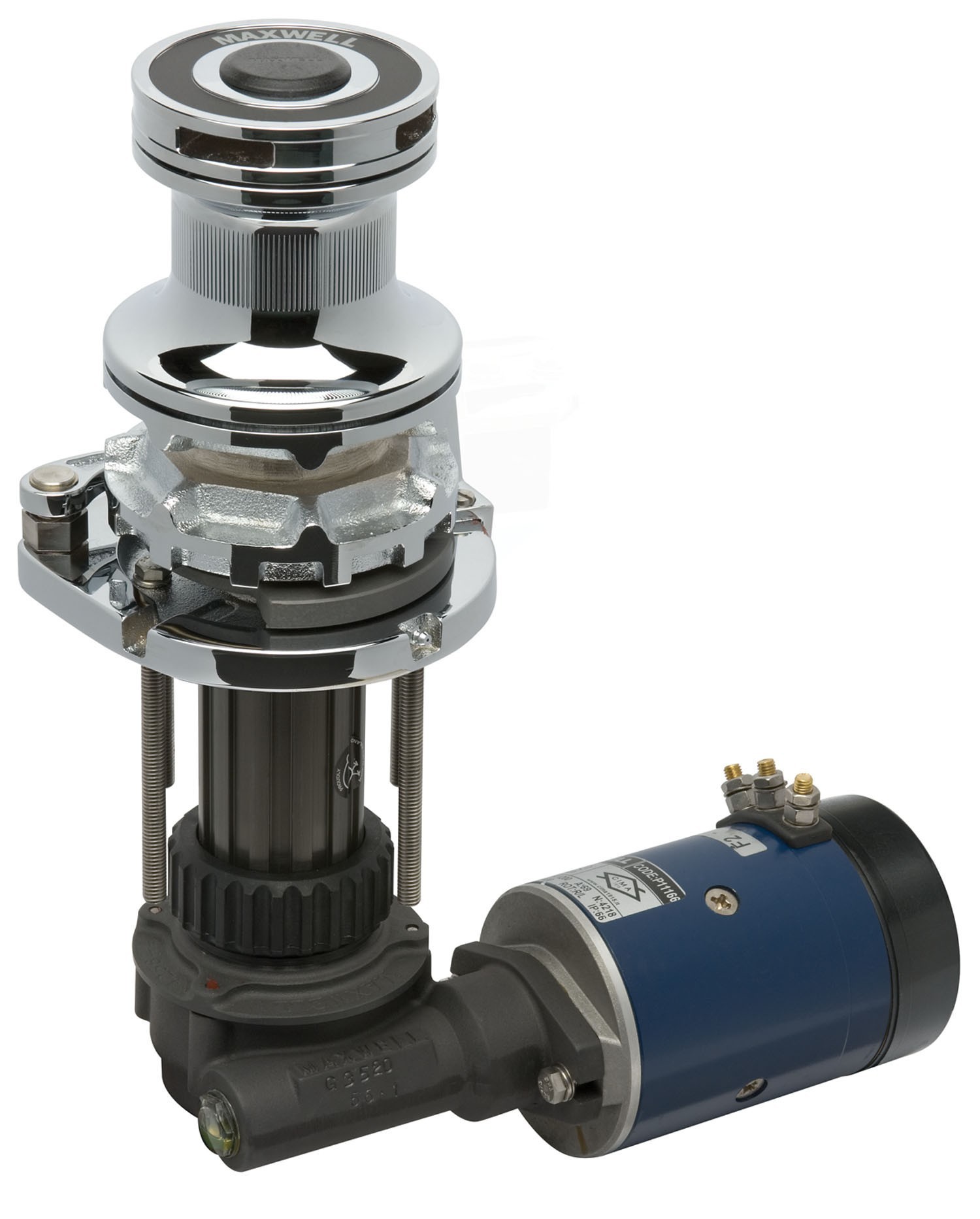

Maxwell VW 1500 Vertical Hydraulic Anchor Windlass with Drum 50TDC (Vetus P102777)
The Maxwell VW 1500 hydraulic anchor windlass with drum is engineered for robust and reliable anchoring on marine vessels requiring hydraulic power systems. Designed for traditional rope and chain combination anchor rodes, it requires manual transfer of the rode from the warping drum to the chainwheel. The vertical configuration and modular design accommodate compact anchor locker installations and allow horizontal mounting on fore-and-aft bulkheads as needed.
Design and Functional Features
- Designed for traditional rope and chain anchor systems with manual transfer to the chainwheel
- Integrated snag-free MAX-grip™ warping drum enabling rope hauling from any direction
- Chainwheel clutch disengagement for positive rope and chain control
- Capability to operate two anchors from a single windlass
- Compatible with traditional shackle and thimble rope-to-chain connections
- Vertical layout suitable for confined anchor locker spaces
Construction and Materials
- Above-deck components crafted from marine-grade stainless steel (AISI 316) and chromed bronze
- Anodized aluminium gearbox and spacer offering enhanced corrosion resistance
- Hydraulic drive system optimized for marine anchoring applications
- Marine-grade stainless steel fasteners ensuring precise alignment and durability
Brake and Control System
- Cone-type brake and clutch mechanism permitting manual free-fall anchoring
- Smooth progressive clutch engagement for controlled operation
- Chainwheel locking pawl for secure anchoring performance
Installation and Maintenance
- Modular design simplifies through-deck installation
- Supports horizontal bulkhead mounting inside the chain locker
- Windlass easily disassembled for servicing and routine maintenance
Technical Specifications
Parameter Specification Drive Type Hydraulic Configuration Vertical Rode Type Rope / Chain Warping Drum Yes Chain Sprocket 50TDC Supported Chain Size 6 – 10 mm -
