ID
1300712
$ 3,900.93
1-2 weeks delivery time
-
+
The Vetus P100435 – Maxwell 1000 VWLP is a 12 V, 1000 W low-profile vertical anchor windlass with 50 TDC deck clearance, designed for rope and chain combination anchor rodes. It delivers reliable automatic chain handling with manual rope control, built for compact sailing boat installations and compatible with 6–8 mm chain sizes.
- Description
- Ask a Question
-

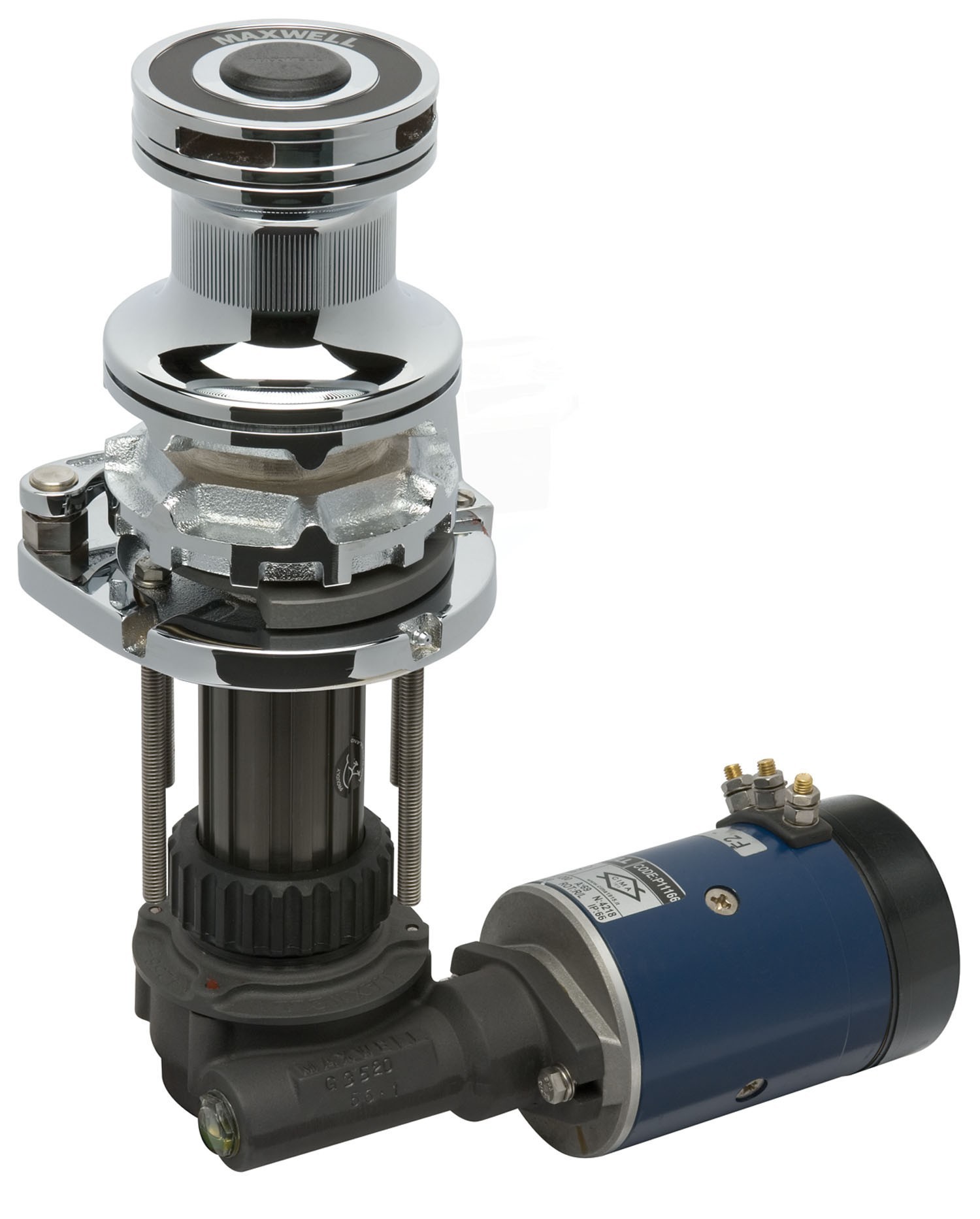

Vetus P100435 – Maxwell 1000 VWLP Vertical Anchor Windlass 12V 1000W
The Vetus P100435 – Maxwell 1000 VWLP is a robust 12 V, 1000 W vertical anchor windlass with a low-profile (VWLP) configuration and 50 TDC (total deck clearance). Engineered for rope and chain combination anchor rodes, it is ideal for sailing boats with limited anchor locker space and supports automatic chain operation with manual rope control.
Specification Value Product Code Vetus P100435 Series Maxwell VWLP Series Motor Power 1000 W Voltage 12 V DC Windlass Orientation Vertical Low Profile Yes (VWLP) Total Deck Clearance (TDC) 50 mm Weight Approx. 22 kg Maximum Pull / Lift Approx. 700 kg Chain Size 6 – 8 mm Rode Type Rope & Chain Combination Drum No
Key Features
- Low-profile (VWLP) vertical windlass design for reduced above-deck height.
- Automatic chainwheel operation in one or two directions.
- Independent warp drum with sprocket clutch for rope handling and positive control.
- Cone-type clutch/brake mechanism for controlled manual “free fall” anchoring.
- Robust two-direction electric motor designed for marine winch applications.
- Chrome-plated chain ring and seawater-resistant alloy housing for long service life. :contentReference[oaicite:2]{index=2}
Operation & Installation
- Functional forward and aft rope hauling via independent warp drum.
- Optional dual-anchor handling facilitated by smooth independent cone couplers.
- Simplified deck-mounted installation with straightforward maintenance access.
- Suitable for compact sailing vessel anchor locker installations where space is limited. :contentReference[oaicite:3]{index=3}
-
