ID
1300717
$ 4,567.01
1-2 weeks delivery time
-
+
The Maxwell VWLP 1000 hydraulic anchor windlass (article Vetus P100443) is a vertical rope and chain windlass designed for sailing boats with limited anchor locker space. Intended for traditional rope and chain rodes of 6–8 mm, it provides a maximum pull of 700 kg, has a total weight of 22 kg, and uses a hydraulic drive system. The unit supports manual free-fall anchoring via a cone clutch mechanism and allows flexible below-deck or bulkhead installation.
- Description
- Ask a Question
-

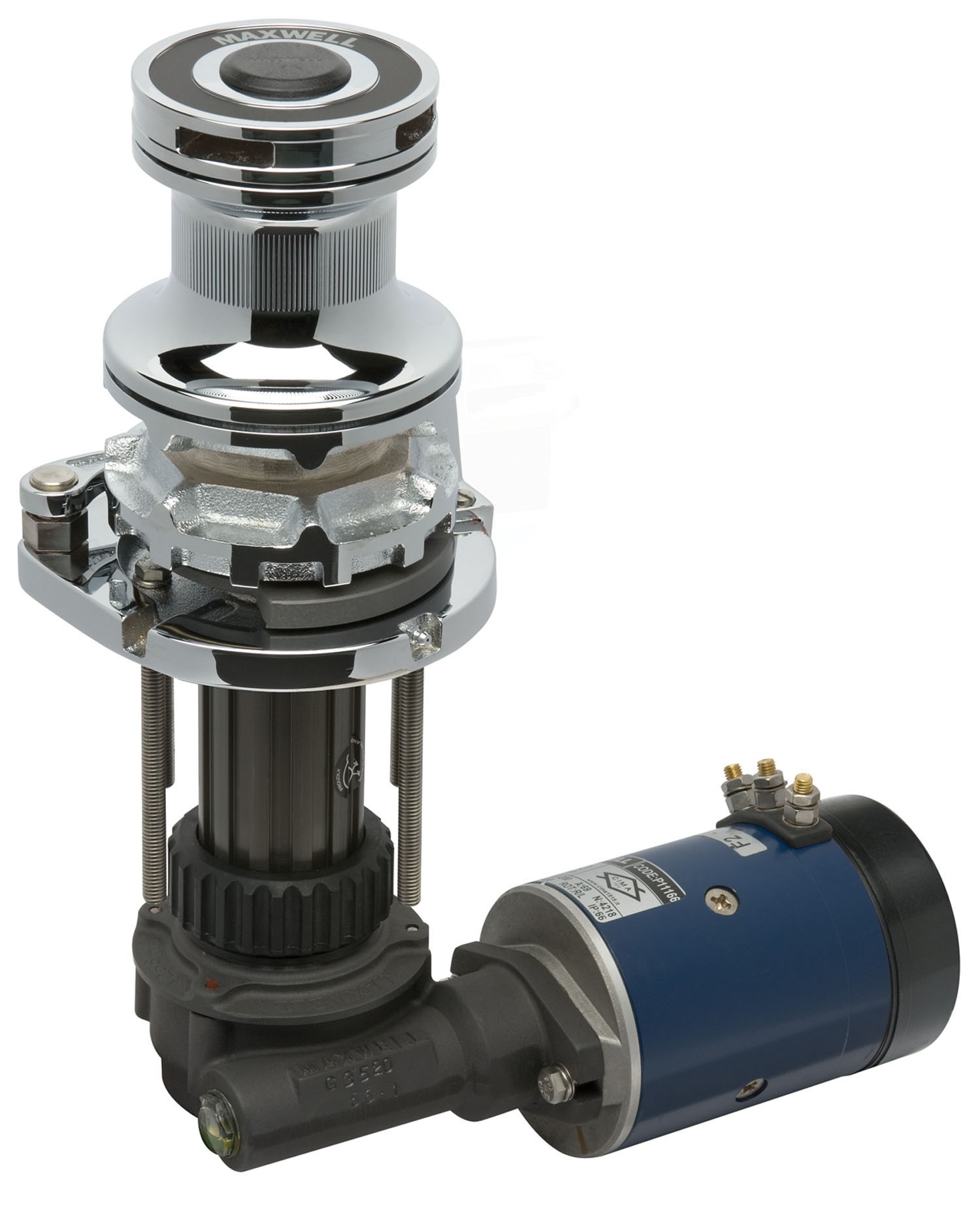

Maxwell VWLP 1000 Vertical Rope and Chain Hydraulic Anchor Windlass
The Maxwell VW Series VWLP 1000 hydraulic windlass is engineered for sailing vessels requiring a compact and robust anchoring solution in confined anchor locker spaces. Designed for traditional rope and chain combination anchor rodes, it requires manual transfer of the rode from the rope warping drum to the chainwheel. The vertical configuration and modular construction allow versatile installation options, including horizontal mounting on a fore-and-aft bulkhead inside the chain locker for below-deck applications.
Design and Functional Features
- Designed for rope and chain combination anchor rodes with manual transfer between rope drum and chainwheel
- Independent MAX-grip™ snag-free rope warping drum for controlled rope handling from any direction
- Chainwheel clutch disengagement providing positive control of all ropes
- Capability to operate two anchors from a single windlass unit
- Compatible with traditional shackle and thimble rope-to-chain connections
- Vertical layout optimized for compact anchor locker installations
Construction and Materials
- Above-deck components manufactured from marine-grade stainless steel (AISI 316) and chromed bronze
- Anodized aluminium gearbox and spacer for corrosion resistance
- Marine-grade stainless steel (AISI 316) fasteners ensuring precise gearbox alignment
- Robust construction suitable for hydraulic drive integration
Brake and Control System
- Cone-type brake and clutch mechanism enabling manual free-fall anchoring
- Smooth and progressive clutch engagement for controlled operation
- Chainwheel locking pawl for secure anchoring performance
Installation and Maintenance
- Modular design simplifies through-deck installation
- Allows horizontal mounting on fore-and-aft bulkheads inside the chain locker
- Easily disassembled for servicing and routine maintenance
Technical Specifications
Parameter Specification Drive Type Hydraulic Configuration Vertical Rode Type Rope / Chain Warping Drum No Maximum Pull / Lift 700 kg Supported Chain Size 6 – 8 mm Weight 22 kg -
