The Maxwell VWLP 1000 anchor windlass (article Vetus P100441) is a 12V vertical electric windlass with a 1000W motor, designed for rope and chain anchor rodes in sailing boats with limited anchor locker space. It supports rope/chain combinations of 6–8 mm, delivers a maximum pull of 700 kg, weighs 22 kg, and features a manual free-fall cone clutch system, making it suitable for compact below-deck or bulkhead installations where controlled anchoring and durability are required.
- Description
- Ask a Question
-

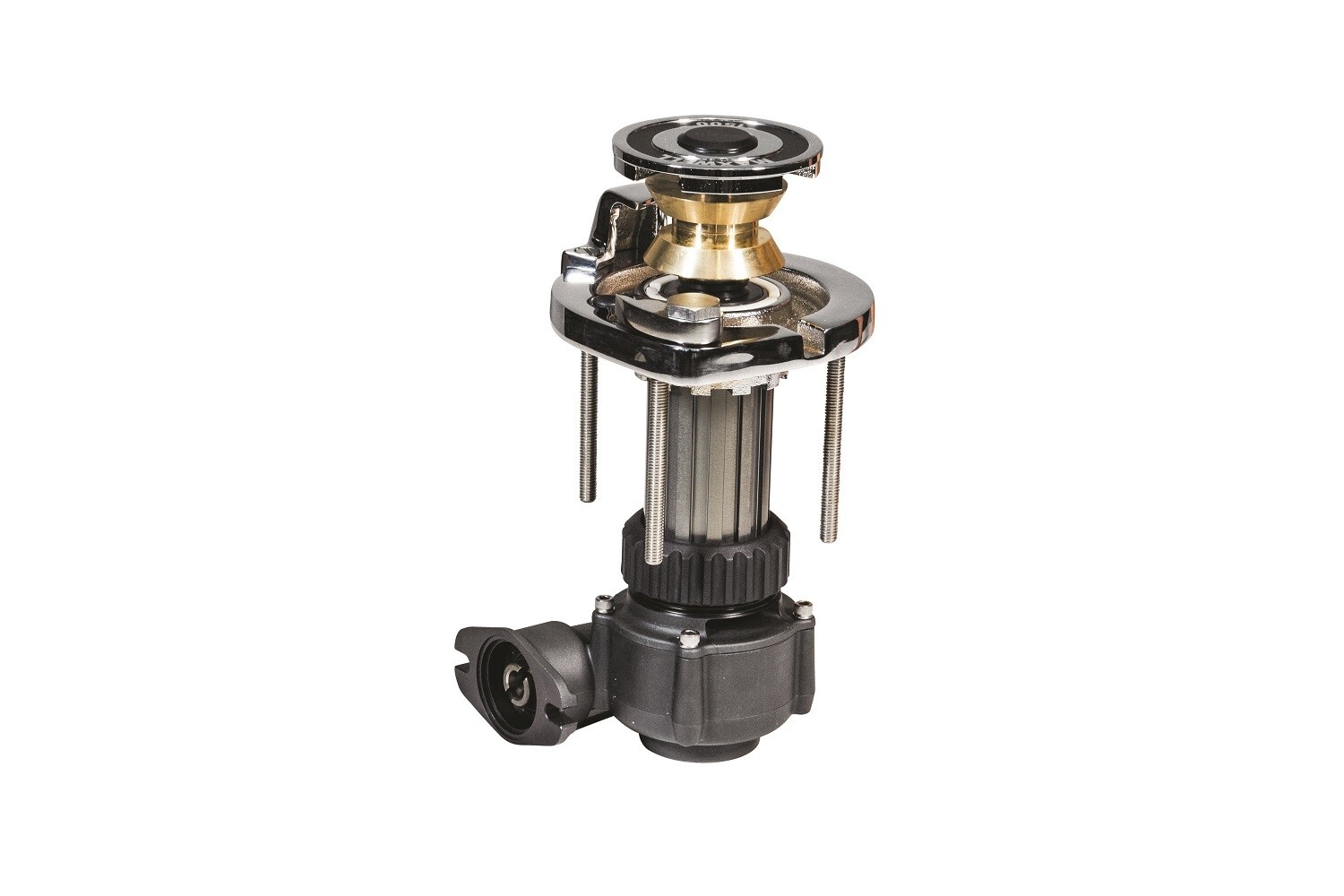

Maxwell VWLP 1000 Vertical Rope and Chain Anchor Windlass 12V 1000W
The Maxwell VW Series VWLP 1000 is a compact vertical anchor windlass engineered for sailing vessels with restricted anchor locker space. It is specifically designed for traditional rope and chain combination anchor rodes, requiring manual transfer of the rode between the rope warping drum and the chainwheel. The modular construction allows flexible installation options, including horizontal mounting on a fore-and-aft bulkhead inside the chain locker for below-deck configurations.
Design and Functional Features
- Designed for rope and chain combination anchor rodes with manual transfer between rope drum and chainwheel
- Independent MAX-grip™ snag-free rope warping drum enabling rope hauling from any direction
- Chainwheel clutch disengagement for precise rope handling and positive operator control
- Capability to operate two anchors from a single windlass unit
- Compatible with traditional shackle and thimble rope-to-chain connections
- Vertical configuration suitable for compact anchor lockers
Construction and Materials
- Above-deck components manufactured from marine-grade stainless steel (AISI 316) and chromed bronze
- Anodized aluminium gearbox and spacer for enhanced corrosion resistance
- Marine-grade stainless steel (AISI 316) fasteners for precise gearbox alignment and simplified installation
- Heavy-duty, dual-direction electric motor designed specifically for marine windlass applications
Brake and Control System
- Cone-type brake and clutch mechanism allowing controlled manual free-fall anchoring
- Smooth progressive clutch engagement for enhanced operator safety
- Chainwheel locking pawl for secure anchoring operation
Installation and Maintenance
- Modular design simplifies through-deck installation
- Supports alternative horizontal mounting on bulkheads inside the chain locker
- Easily disassembled construction for routine servicing and maintenance
Technical Specifications
Parameter Specification Motor Power 1000 W Operating Voltage 12 V Configuration Vertical Rode Type Rope / Chain Warping Drum No Maximum Pull / Lift 700 kg Supported Chain Size 6 – 8 mm Weight 22 kg -
