The Lewmar AA560 Anchor Chain Counter Control Panel is an advanced bridge-mounted windlass controller designed to monitor deployed rope or chain length and chain speed while providing intelligent anchor handling functions. Featuring an LCD display with backlit buttons, IP67 protection and compatibility with DC, AC and hydraulic windlass systems, the AA560 includes programmable safety lock, docking alarm, preset stopping point and One Touch automatic anchor deployment and retrieval. The panel measures 140 × 130 mm and operates on 12/24V systems.
- Description
- Ask a Question
-

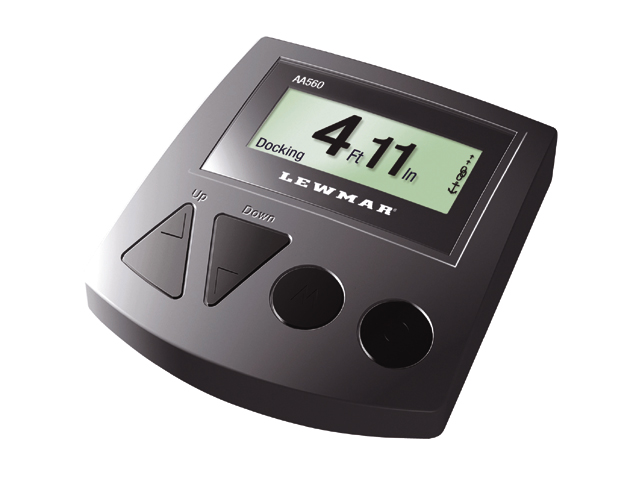

Lewmar AA560 Anchor Chain Counter Control Panel with LCD Display – 12/24V, IP67
The Lewmar AA560 Anchor Chain Counter Control Panel is an advanced monitoring and control system designed for electric anchor windlasses. Installed at the helm, it provides real-time information about anchor deployment while allowing convenient control of windlass operation from a single interface.
The large LCD display with backlit buttons shows the deployed rope or chain length together with chain speed, making anchoring operations more precise and easier to monitor under all lighting conditions.
Designed for use with DC, AC and hydraulic windlass systems, the AA560 incorporates several programmable functions that improve both safety and ease of operation. These include a safety lock to prevent accidental activation, programmable docking alarm, preset stopping point and One Touch automatic anchor deployment and retrieval with automatic speed reduction as the anchor approaches its docking position.
Key Features
- Advanced anchor chain counter and windlass control panel;
- Large LCD display with backlit buttons;
- Displays deployed rope or chain length;
- Displays chain retrieval speed;
- Programmable docking alarm;
- Safety lock to prevent unwanted operation;
- Preset stopping point;
- One Touch automatic anchor deployment and retrieval;
- Automatic speed reduction before anchor docking;
- Compatible with DC, AC and hydraulic windlass systems;
- IP67 waterproof protection.
Technical Specifications
Model Lewmar AA560 Product Type Anchor Chain Counter Control Panel Operating Voltage 12 / 24 V Display LCD with backlit buttons Displayed Information Chain or rope length, chain speed Compatible Systems DC, AC and hydraulic windlasses Protection Rating IP67 Panel Dimensions 140 × 130 mm
Advanced Functions
Safety Lock Prevents accidental operation Docking Alarm Warns when the anchor approaches the docking position Preset Stop Automatically stops at a predefined chain length One Touch Function Automatically deploys or retrieves a preset length of rope or chain with speed reduction before docking Additional Monitoring Displays chain speed during operation Documents
Lewmar AA 560 Anchor Windlass Chain Counter Control Panel Size: 653,6 Kb -
