ID
1282631
$ 742.54
1-2 weeks delivery time
-
+
The Lewmar AA150 Anchor Chain Counter Control Panel provides accurate monitoring of anchor chain or rope deployment while displaying the length paid out or retrieved in real time. Compatible with rope/chain combination and all-chain windlass systems, as well as DC, AC and hydraulic windlasses, it features an integrated docking alarm, Plug & Play installation, adjustable red backlighting and IP65 protection. Supporting installations with up to two control units, the panel measures Ø60 mm, operates on 12/24V systems, and includes a 10 × 8 mm magnet together with a motor sensor for rope/chain windlass applications.
- Description
- Ask a Question
-

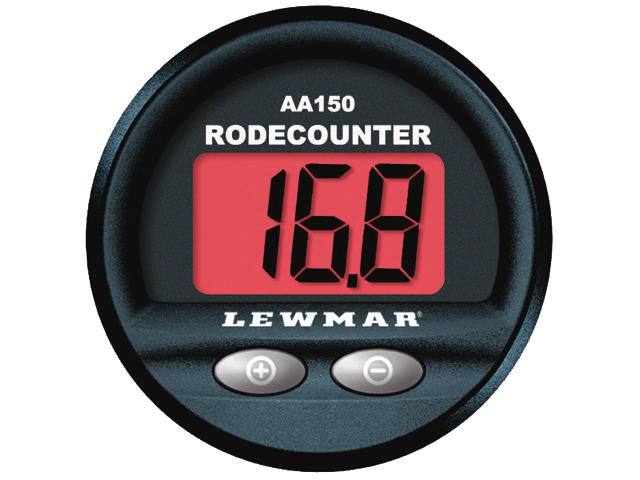

Lewmar AA150 Anchor Chain Counter Control Panel with Docking Alarm – 12/24V, IP65
The Lewmar AA150 Anchor Chain Counter Control Panel is designed to provide accurate monitoring of anchor deployment and retrieval while displaying the length of chain or rope paid out through the windlass. The system improves anchoring accuracy and provides the operator with essential real-time information during anchoring operations.
The control panel is compatible with rope/chain combination rodes as well as all-chain systems and can be used with DC, AC and hydraulic windlasses. The integrated docking alarm alerts the operator when the anchor approaches its docking position, helping to protect both the anchor and the vessel.
The Plug & Play installation simplifies setup, while the adjustable red display illumination ensures excellent visibility during night operation. The system supports installation of up to two control panels and can also be integrated with compatible Lewmar AA560, AA710 and AA300 series devices. The unit includes a 10 × 8 mm magnet and a motor-mounted sensor for rope/chain windlass installations.
Key Features
- Electronic anchor chain counter with docking alarm;
- Displays chain or rope length paid out and retrieved;
- Compatible with rope/chain combination and all-chain windlasses;
- Suitable for DC, AC and hydraulic windlass systems;
- Plug & Play installation;
- Adjustable red display backlighting;
- Selectable display in metres or feet;
- Supports installation of up to two control panels;
- Compatible with Lewmar AA560, AA710 and AA300 series multi-station systems;
- IP65 protection rating.
Technical Specifications
Application Anchor chain and rope monitoring Operating Voltage 12 / 24 V Protection Rating IP65 Maximum Counter Length 999 m Compatible Rode Types Rope/chain combination and all-chain Compatible Windlass Systems DC, AC and hydraulic Panel Diameter 60 mm Display Units Metres or feet Maximum Number of Panels 2
Kit Contents
Control Panel Lewmar AA150 chain counter display Magnet 10 × 8 mm Motor Sensor For rope/chain windlass installations Installation Hardware Panel installation kit and documentation Documents
Lewmar AA150 manual Size: 745,6 KbLewmar AA 150 Anchor Chain Counter Control Panel Size: 505,3 Kb -
