ID
1345227
$ 438.25
1-2 weeks delivery time
-
+
The Exalto EWT 223BD 12V wiper motor is a bulkhead-mounted unit from the MD1 series, delivering 23 Nm torque with a 40° wiping angle. It supports pendulum arm applications and features self-parking and interval speed functions for reliable operation.
- Description
- Ask a Question
-

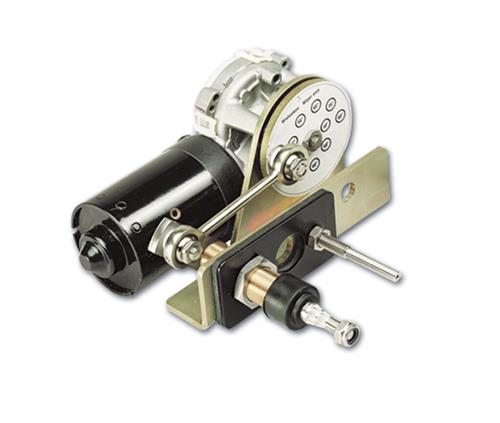

Exalto EWT Wiper 223BD 12V 40° 23Nm Bulkhead 35mm
The Exalto EWT 223BD wiper motor is a 12V DC bulkhead-mounted solution from the MD1 series. It is designed for single-axis pendulum arm applications and delivers a constant 23 Nm torque. This version provides a 40° angle of view and includes self-parking and interval speed functions for reliable and controlled operation.
Key Features
- 23 Nm torque output
- 40° wiping angle
- Pendulum arm type (MD1)
- Self-parking function
- Interval speed operation
- Bulkhead mounting
Technical Specifications
Sales Unit 1 piece Voltage 12 V Type VDC Power 36 W Torque 23 Nm Angle Of View 40° Driven Axles 1 High Speed 56 rpm Low Speed 38 rpm Maximum Amperage 3 A Recommended Fuse Rating 6 A Ungrounded Yes Drive Shaft Diameter 19 mm Shaft Length 92 mm Support Diameter 6.4 mm Wall Thickness 35 mm Maximum Arm Length 750 mm Maximum Blade Length 800 mm Product Width 170 mm Product Depth 198 mm Product Height 90 mm Series MD1 Suitable For MD1 series
Brand: Exalto Wiper Technologies B.V. (Article code: XA2165.32-40) (Barcode: 8720763539136)
-
