ID
1345230
$ 438.25
1-2 weeks delivery time
-
+
The Exalto EWT 223BD 12V wiper motor features a 55° wiping angle and 23 Nm torque, designed for bulkhead-mounted pendulum arm applications. It includes self-parking and interval speed functions for controlled operation.
- Description
- Ask a Question
-

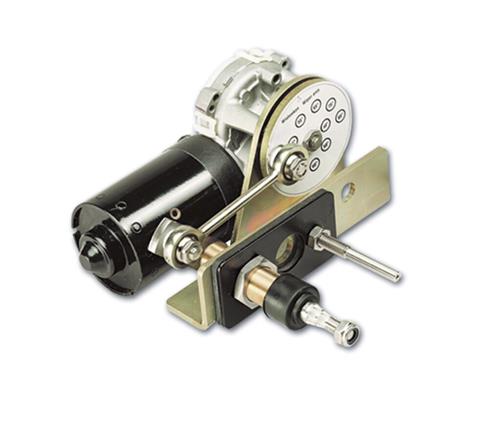

Exalto EWT Wiper 223BD 12V 55° 23Nm Bulkhead 35mm
The Exalto EWT 223BD wiper motor is a powerful and reliable 12V DC solution from the MD1 series, designed for bulkhead mounting. With a 55° angle of view and a constant 23 Nm torque, this model is suitable for demanding marine applications. It supports pendulum arm systems and features self-parking and interval speed for controlled and efficient wiping.
Key Features
- 55° wiping angle for extended visibility
- 23 Nm torque output
- Pendulum arm type (MD1)
- Self-parking function
- Interval speed operation
- Single driven axle design
Technical Specifications
Sales Unit 1 piece Voltage 12 V Type VDC Power 36 W Torque 23 Nm Angle Of View 55° Driven Axles 1 High Speed 56 rpm Low Speed 38 rpm Maximum Amperage 3 A Recommended Fuse Rating 6 A Ungrounded Yes Drive Shaft Diameter 19 mm Shaft Length 92 mm Distance HoH 50 mm Support Diameter 6.4 mm Wall Thickness 20 mm Maximum Arm Length 750 mm Maximum Blade Length 800 mm Product Width 170 mm Product Depth 198 mm Product Height 90 mm Series MD1 Suitable For MD1 series
Brand: Exalto Wiper Technologies B.V. (Article code: XA2165.32-55) (Barcode: 8720763539167)
-
