ID
1345393
$ 469.18
1-2 weeks delivery time
-
+
Exalto EWT 223BD 24V wiper motor with a 65° angle of view, suitable for heavy-duty bulkhead installation up to 125 mm. MD1 series pendulum wiper with self-parking, interval operation, and 25 Nm torque.
- Description
- Ask a Question
-

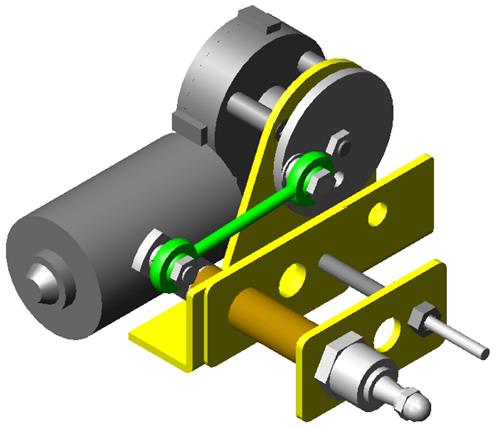

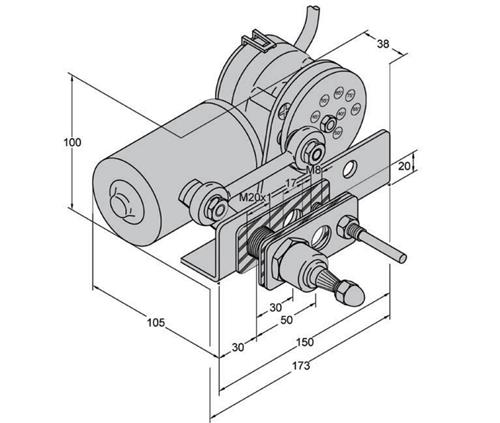

Exalto EWT Wiper 223BD 24V 65° 25Nm Bulkhead 125mm
The Exalto EWT 223BD 24V wiper motor with a 65° angle of view is engineered for heavy-duty bulkhead installation with a wall thickness of 125 mm. This MD1 series pendulum wiper features self-parking and speed interval functionality. With a torque of 25 Nm and compatibility with wiper arms and blades up to 750 mm, it delivers dependable performance in marine and industrial environments.
Key Features
- Pendulum wiping system
- 65° angle of view
- Self-parking function
- Speed interval available
- Bulkhead mounting for 125 mm wall thickness
Technical Data
Article Code XA2166.50-65 Sales Unit 1 piece EAN Code 8720763541672 Brand Exalto Wiper Technologies B.V. Series MD1 Suitable For MD1 series Arm Type MD1 Pendulum Driven Axles 1 Angle Of View 65° Voltage 24 V Type VDC Power 36 W Torque 25 Nm High Speed 60 rpm Low Speed 40 rpm Maximum Ampèrage 1.5 A Recommended Fuse Rating 4 A Ungrounded yes Drive Shaft Diameter 19 mm Shaft Length 182 mm Centre Distance HoH 50 mm Support Diameter 6.4 mm Maximum Arm Length 750 mm Maximum Blade Length 750 mm Product Width 170 mm Product Depth 288 mm Product Height 90 mm Wall Thickness 125 mm
Brand: Exalto Wiper Technologies B.V. (Article code: XA2166.50-65)
-
