Exalto EWT 223BDS 24V single-drive wiper motor with a 45° wiping angle. MD1 series pendulum design for 125 mm bulkhead mounting, featuring self-parking, interval function, and steady 25 Nm torque.
- Description
- Ask a Question
-

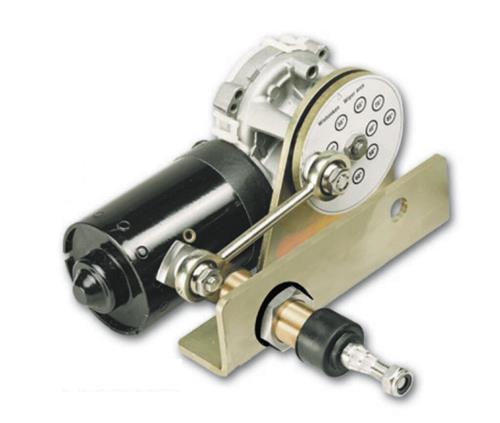

Exalto EWT Wiper 223BDS 24V 45° 25Nm Bulkhead 125mm Single
The Exalto EWT 223BDS 24V wiper motor with a 45° angle of view is built for single-drive bulkhead mounting with a wall thickness of 125 mm. Part of the MD1 series, this pendulum wiper includes self-parking and speed interval and delivers a steady 25 Nm torque for dependable wiping performance.
Key Features
- Single-drive configuration
- Pendulum wiping movement
- 45° angle of view
- Self-parking resting position
- Speed interval function
Technical Data
Article Code XA2166.50S-45 Sales Unit 1 piece EAN Code 8720763541740 Brand Exalto Wiper Technologies B.V. Series MD1 Suitable For MD1 series Arm Type MD1 Pendulum Driven Axles 1 Angle Of View 45° Voltage 24 V Type VDC Power 36 W Torque 25 Nm High Speed 60 rpm Low Speed 40 rpm Maximum Ampèrage 1.5 A Recommended Fuse Rating 4 A Ungrounded yes Drive Shaft Diameter 19 mm Shaft Length 182 mm Maximum Arm Length 750 mm Maximum Blade Length 750 mm Product Width 170 mm Product Depth 291 mm Product Height 90 mm Wall Thickness 125 mm
Brand: Exalto Wiper Technologies B.V. (Article code: XA2166.50S-45)
-
