The Exalto EWT 223BD 12V motor from the MD1 series features an 85° wide wiping angle with 23 Nm torque. It supports pendulum arm systems and includes self-parking and interval speed functions for professional marine use.
- Description
- Ask a Question
-

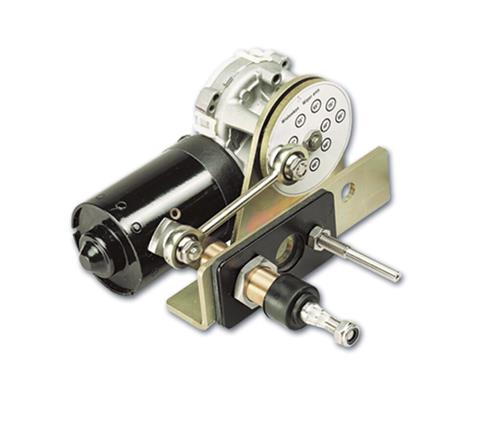

Exalto EWT Wiper 223BD 12V 85° 23Nm Bulkhead 35mm
The Exalto EWT 223BD is a 12V DC bulkhead-mounted wiper motor from the MD1 series, designed for wide-angle wiping applications. With a large 85° angle of view and a constant 23 Nm torque, this motor delivers reliable performance for pendulum arm systems. It is equipped with self-parking and interval speed functions, making it suitable for professional marine installations.
Key Features
- 85° wide wiping angle
- Constant 23 Nm torque
- Pendulum arm type (MD1)
- Self-parking function
- Interval speed operation
- Bulkhead mounting design
Technical Specifications
Sales Unit 1 piece Voltage 12 V Type VDC Power 36 W Torque 23 Nm Angle Of View 85° Driven Axles 1 High Speed 56 rpm Low Speed 38 rpm Maximum Amperage 3 A Recommended Fuse Rating 6 A Ungrounded Yes Drive Shaft Diameter 19 mm Shaft Length 92 mm Distance HoH 50 mm Support Diameter 6.4 mm Wall Thickness 20 mm Maximum Arm Length 750 mm Maximum Blade Length 800 mm Product Width 170 mm Product Depth 198 mm Product Height 90 mm Series MD1 Suitable For MD1 series
Brand: Exalto Wiper Technologies B.V. (Article code: XA2165.32-85) (Barcode: 8720763539228)
-
