ID
1345242
$ 433.09
1-2 weeks delivery time
-
+
The Exalto EWT 223BDS 12V single wiper motor offers a 60° wiping angle with stable 23 Nm torque. It supports pendulum arm systems, interval speed, and self-parking functions, suitable for ungrounded installations.
- Description
- Ask a Question
-

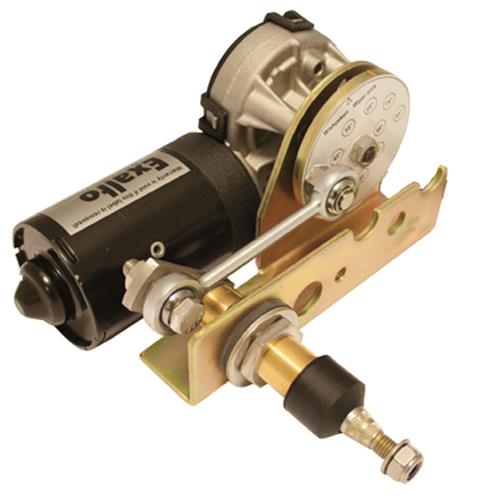

Exalto EWT Wiper 223BDS 12V 60° 23Nm Bulkhead 35mm Single
Single pendulum wiper motor for MD1 series, designed for bulkhead mounting. Operates on 12 VDC with stable torque, dual speed operation, interval function, and self-parking. Suitable for ungrounded installations with one driven axle.
Key Features
- Pendulum arm type MD1
- Speed interval available
- Self-parking function
- Ungrounded design
- Single driven axle
Technical Data
Article Code XA2165.32S-60 Sales Unit 1 piece Series MD1 Suitable For MD1 series Voltage 12 V Type VDC Power 36 W Torque 23 Nm Angle Of View 60° Hoge Snelheid 56 rpm Lage Snelheid 38 rpm Maximum Ampèrage 3 A Recommended Fuse Rating 6 A Drive Shaft Diameter 19 mm Shaft Length 92 mm Wall Thickness 35 mm Maximum Arm Length 750 mm Maximum Blade Length 800 mm Product Width 170 mm Product Depth 201 mm Product Height 90 mm
Brand: Exalto Wiper Technologies B.V.
Article: XA2165.32S-60
Barcode: 8720763539280
-
