The Exalto EWT 223BDS 12V single motor provides a 50° angle of view with 23 Nm torque, supporting pendulum arm installations. It includes self-parking and interval speed features for reliable operation.
- Description
- Ask a Question
-

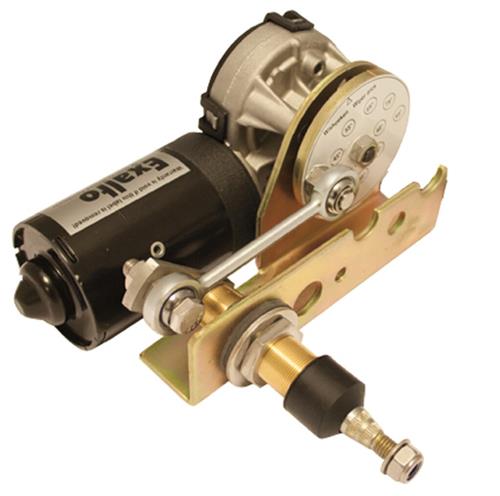

Exalto EWT Wiper 223BDS 12V 50° 23Nm Bulkhead 35mm Single
This Exalto EWT 223BDS single wiper motor operates on 12V DC and is part of the MD1 series. It offers a 50° angle of view combined with a constant 23 Nm torque. The motor supports pendulum arm systems and includes self-parking and interval speed functions for reliable operation.
Key Features
- 50° wiping angle
- 23 Nm torque output
- Single version wiper motor
- Pendulum arm compatibility (MD1)
- Self-parking function
- Interval speed control
Technical Specifications
Sales Unit 1 piece Voltage 12 V Type VDC Power 36 W Torque 23 Nm Angle Of View 50° Driven Axles 1 High Speed 56 rpm Low Speed 38 rpm Maximum Amperage 3 A Recommended Fuse Rating 6 A Ungrounded Yes Drive Shaft Diameter 19 mm Shaft Length 92 mm Wall Thickness 35 mm Maximum Arm Length 750 mm Maximum Blade Length 800 mm Product Width 170 mm Product Depth 201 mm Product Height 90 mm Series MD1 Suitable For MD1 series
Brand: Exalto Wiper Technologies B.V. (Article code: XA2165.32S-50) (Barcode: 8720763539266)
-
