ID
1345235
$ 438.25
1-2 weeks delivery time
-
+
The Exalto EWT 223BD 12V wiper motor provides an 80° angle of view and 23 Nm torque, suitable for pendulum arm systems. It includes self-parking and interval speed functions for smooth, reliable operation.
- Description
- Ask a Question
-

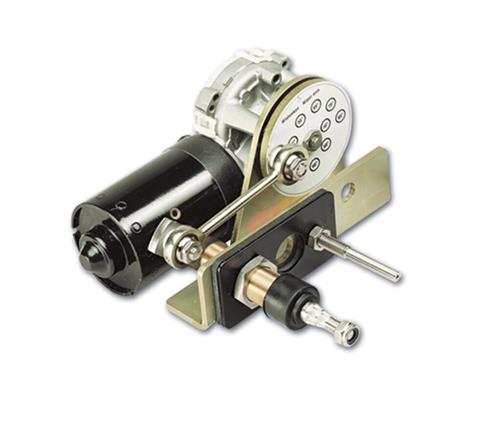

Exalto EWT Wiper 223BD 12V 80° 23Nm Bulkhead 35mm
The Exalto EWT 223BD 12V wiper motor from the MD1 series provides maximum wiping coverage with an 80° angle of view. Delivering a constant 23 Nm torque, this bulkhead-mounted motor is suitable for pendulum arm systems. It includes self-parking and interval speed functions for smooth and dependable operation.
Key Features
- 80° extra-wide wiping angle
- 23 Nm torque output
- Pendulum arm type (MD1)
- Self-parking function
- Interval speed operation
Technical Specifications
Sales Unit 1 piece Voltage 12 V Type VDC Power 36 W Torque 23 Nm Angle Of View 80° Driven Axles 1 High Speed 56 rpm Low Speed 38 rpm Maximum Amperage 3 A Recommended Fuse Rating 6 A Ungrounded Yes Drive Shaft Diameter 19 mm Shaft Length 92 mm Distance HoH 50 mm Support Diameter 6.4 mm Wall Thickness 20 mm Maximum Arm Length 750 mm Maximum Blade Length 800 mm Product Width 170 mm Product Depth 198 mm Product Height 90 mm Series MD1 Suitable For MD1 series
Brand: Exalto Wiper Technologies B.V. (Article code: XA2165.32-80) (Barcode: 8720763539211)
-
