ID
1345241
$ 433.09
1-2 weeks delivery time
-
+
The Exalto EWT 223BDS 12V single motor features a 55° wiping angle and 23 Nm torque, designed for pendulum arm systems. Self-parking and interval speed functions ensure smooth operation.
- Description
- Ask a Question
-

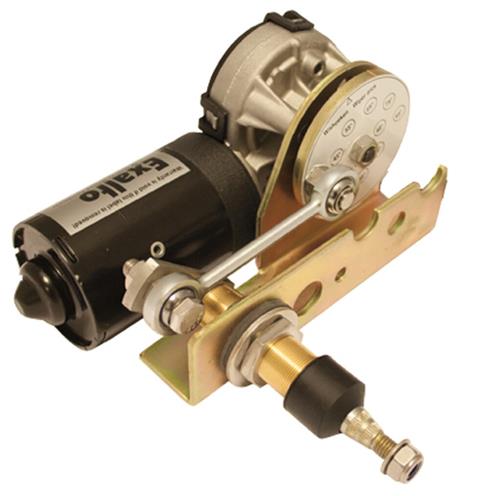

Exalto EWT Wiper 223BDS 12V 55° 23Nm Bulkhead 35mm Single
The Exalto EWT 223BDS 12V single wiper motor from the MD1 series is designed for wider wiping coverage. Featuring a 55° angle of view and a steady 23 Nm torque, this motor is suitable for pendulum arm installations. Self-parking and interval speed functions provide smooth and dependable wiping performance.
Key Features
- 55° wiping angle
- 23 Nm torque output
- Single version configuration
- Pendulum arm type (MD1)
- Self-parking function
- Interval speed operation
Technical Specifications
Sales Unit 1 piece Voltage 12 V Type VDC Power 36 W Torque 23 Nm Angle Of View 55° Driven Axles 1 High Speed 56 rpm Low Speed 38 rpm Maximum Amperage 3 A Recommended Fuse Rating 6 A Ungrounded Yes Drive Shaft Diameter 19 mm Shaft Length 92 mm Wall Thickness 35 mm Maximum Arm Length 750 mm Maximum Blade Length 800 mm Product Width 170 mm Product Depth 201 mm Product Height 90 mm Series MD1 Suitable For MD1 series
Brand: Exalto Wiper Technologies B.V. (Article code: XA2165.32S-55) (Barcode: 8720763539273)
-
