The Exalto EWT 223BDS 12V single motor delivers a 65° angle of view and 23 Nm torque, supporting pendulum arm applications. It features interval speed, self-parking, and ungrounded design for reliable performance.
- Description
- Ask a Question
-

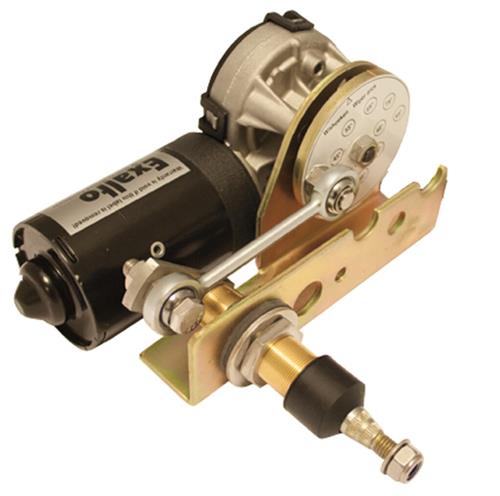

Exalto EWT Wiper 223BDS 12V 65° 23Nm Bulkhead 35mm Single
MD1 series pendulum wiper motor with a 65° wiping angle. Built for 12 VDC systems, offering interval speeds, self-parking, and reliable performance in bulkhead-mounted applications.
Key Features
- Pendulum arm type MD1
- Speed interval available
- Self-parking function
- Ungrounded design
- Single driven axle
Technical Data
Article Code XA2165.32S-65 Sales Unit 1 piece Series MD1 Suitable For MD1 series Voltage 12 V Type VDC Power 36 W Torque 23 Nm Angle Of View 65° Hoge Snelheid 56 rpm Lage Snelheid 38 rpm Maximum Ampèrage 3 A Recommended Fuse Rating 6 A Drive Shaft Diameter 19 mm Shaft Length 92 mm Wall Thickness 35 mm Maximum Arm Length 750 mm Maximum Blade Length 800 mm Product Width 170 mm Product Depth 201 mm Product Height 90 mm
Brand: Exalto Wiper Technologies B.V.
Article: XA2165.32S-65
Barcode: 8720763539297
-
