The Exalto EWT 223BDS 12V single wiper motor offers a 45° wiping angle and 23 Nm torque, suitable for pendulum arm systems. It includes self-parking and interval speed functions for controlled wiping performance.
- Description
- Ask a Question
-

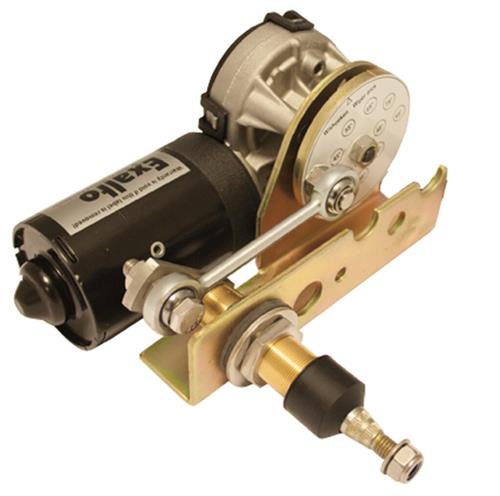

Exalto EWT Wiper 223BDS 12V 45° 23Nm Bulkhead 35mm Single
The Exalto EWT 223BDS is a single-version 12V DC wiper motor from the MD1 series, designed for bulkhead mounting. With a 45° angle of view and a reliable 23 Nm torque output, this motor is suitable for pendulum arm applications. Self-parking and interval speed functions ensure controlled and dependable wiping performance.
Key Features
- 45° wiping angle
- 23 Nm torque output
- Single version design
- Pendulum arm type (MD1)
- Self-parking function
- Interval speed operation
Technical Specifications
Sales Unit 1 piece Voltage 12 V Type VDC Power 36 W Torque 23 Nm Angle Of View 45° Driven Axles 1 High Speed 56 rpm Low Speed 38 rpm Maximum Amperage 3 A Recommended Fuse Rating 6 A Ungrounded Yes Drive Shaft Diameter 19 mm Shaft Length 92 mm Wall Thickness 35 mm Maximum Arm Length 750 mm Maximum Blade Length 800 mm Product Width 170 mm Product Depth 201 mm Product Height 90 mm Series MD1 Suitable For MD1 series
Brand: Exalto Wiper Technologies B.V. (Article code: XA2165.32S-45) (Barcode: 8720763539259)
-
