The Scanstrut SC-USB-F1 Flip Pro features both USB-A and USB-C ports for dual-voltage systems (12V/24V), offering fast charging up to 36W on 12V and 60W on 24V. It is marine-ready with IPX4 waterproofing, spring-loaded protective caps, UV resistance, and compact premium materials, providing reliable and safe charging for multiple devices onboard.
- Description
- Ask a Question
-
Scanstrut SC-USB-F1 - Flip Pro USB-A and USB-C Connection 12/24V
The Flip Pro SC-USB-F1 is engineered for dual-voltage systems (12V or 24V) and comes equipped with both a USB-A and a USB-C port, delivering optimal connectivity and fast charging for a variety of devices onboard.

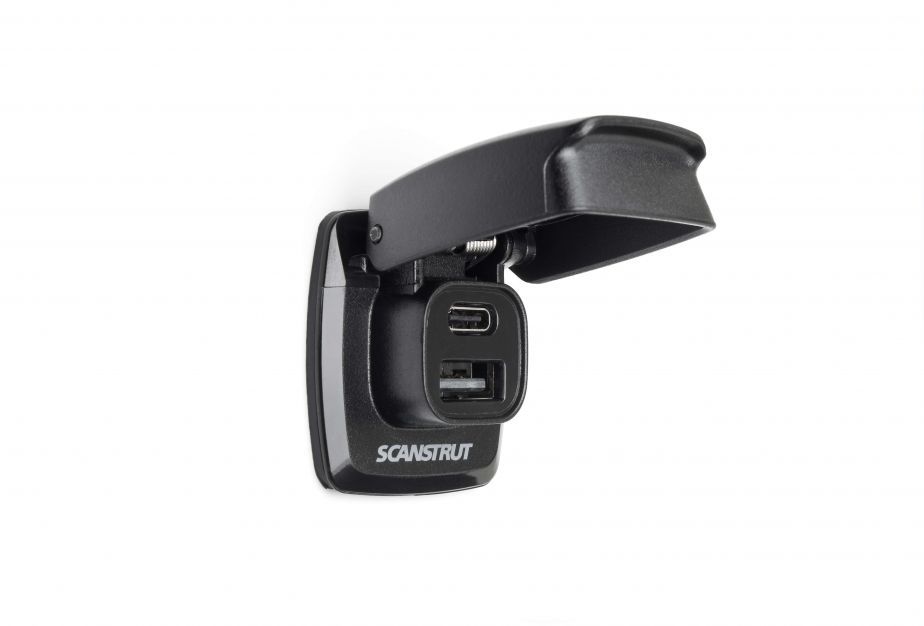

- Spring-loaded cap stays tightly closed when not in use, shielding the ports from water and dust, and locks open during charging to protect cables.
- Compact design made from premium marine-grade materials with IPX4 waterproof rating, making it fully washdown-ready.
- Fast charging: up to 36W on 12V systems and 60W on 24V systems, ideal for laptops via USB-C, and capable of charging large tablets and two Apple devices simultaneously.
- USB-C output: 60W max (24V system), 36W max (12V system)
- USB-A output: 36W max
- Install cut-out fits standard USB sockets (29mm / 1 1/8”) for easy retrofitting or swapping existing chargers.
- Universal fit for USB-A and USB-C connectors, supports fast charge for up to two devices at a time.
- Washdown proof with cover closed (IPX4)
- Marine-ready with internal anti-corrosion coating, UV resistance, and 316 stainless hinge and spring.

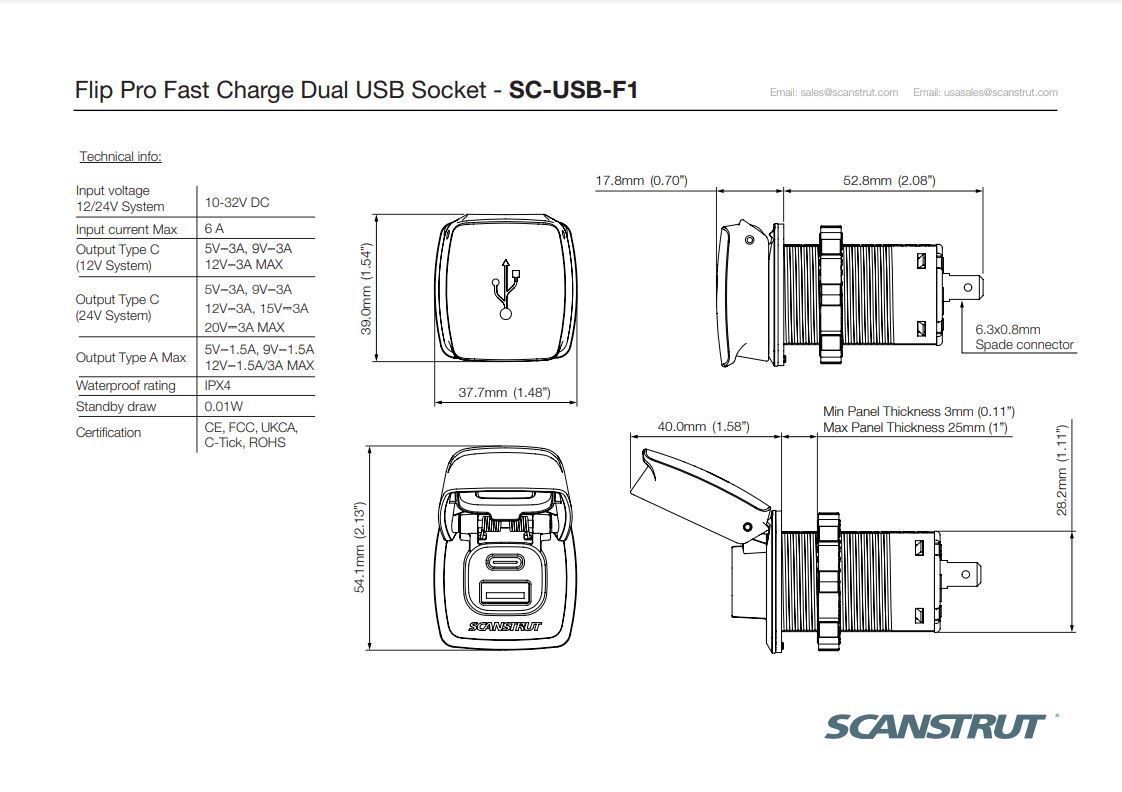

- Electrical specifications:
- Input Voltage: 10-32V DC (12/24V system)
- Input Current: Max 6A (10A fuse recommended)
- Type C Output: 12V System: 5V⎓3A, 9V⎓3A, 12V⎓3A MAX; 24V System: 5V⎓3A, 9V⎓3A, 12V⎓3A, 15V⎓3A, 20V⎓3A MAX
- Type A Output: 5V⎓1.5A, 9V⎓1.5A, 12V⎓1.5A/3A MAX
- Standby Draw: 0.01W
- Certification: CE, FCC, UKCA, C-Tick, ROHS
- Item number: SCSC-USB-F1
- Important: Use the supplied device cable to achieve maximum charging performance. Phones charge at the same speed on 12V or 24V systems, but full 60W output for laptops requires a 24V system.
-
