The SC-USB-F4 Flip Pro Plus combines USB-A and USB-C charging in a compact marine-grade design with IPX4 washdown protection and spring-loaded port caps. It delivers 36W on 12V and 60W on 24V for USB-C, and up to 36W for USB-A, supporting simultaneous fast charging of two devices. Designed for a 32mm mounting hole with a front bezel, it includes anti-corrosion internal coating, UV resistance, and a stainless steel hinge, with input voltage 10-32V DC, max 6A, CE, FCC, UKCA, C-Tick, ROHS, WEE certified, and item number SCSC-USB-F4.
- Description
- Ask a Question
-
Scanstrut SC-USB-F4 - Flip Pro Plus USB-A and USB-C Connection
Flip Pro Plus combines versatility and speed, offering both USB-A and USB-C charging options for modern devices. Designed to align visually with the Flip Pro series, it’s compact, marine-grade, and fully waterproof.
- Power Output: 1x USB-A and 1x USB-C for ultra-fast universal charging.

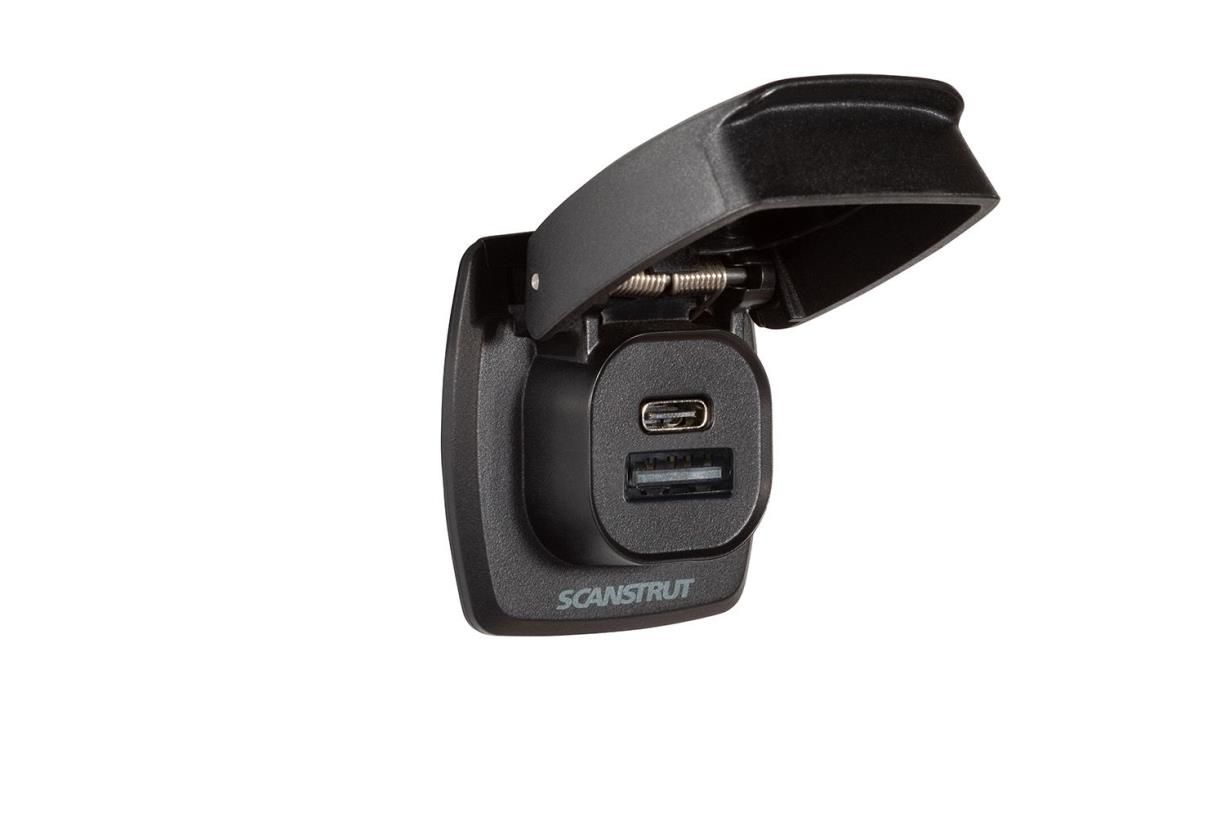

- Port Protection: Spring-loaded caps remain closed when not in use, shielding from water and dirt.
- Design: Compact footprint matching Flip Pro range, premium marine-grade materials, IPX4 washdown-proof.
- Charging Speeds: USB-C: 36W on 12V, 60W on 24V; USB-A: 36W max. Ideal for laptops, tablets, and phones.
- Universal Fit: Compatible with any USB-A or USB-C device, allows fast charging of 2 devices simultaneously.

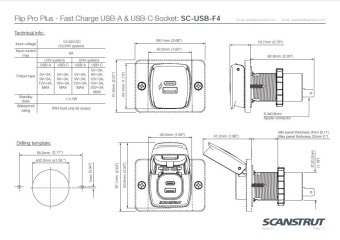

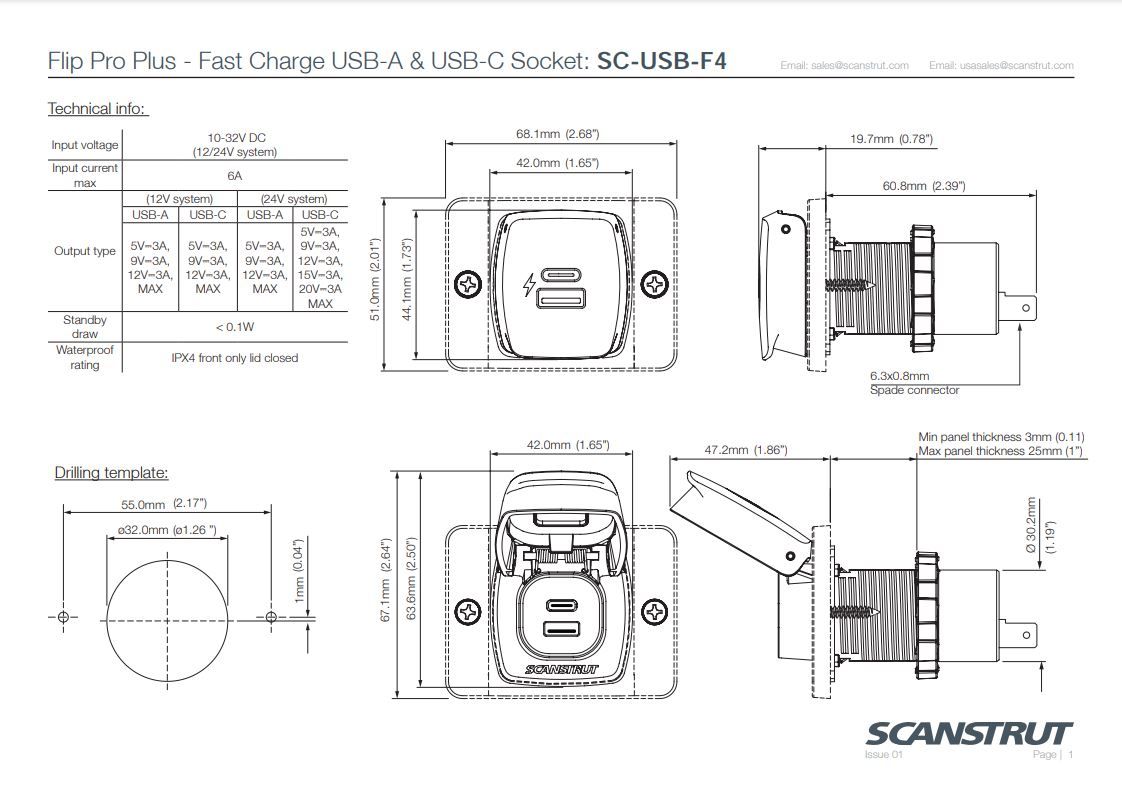

- Installation: 32mm (1 1/8”) mounting hole, front bezel included for seamless integration with Flip Pro series.
- Marine Ready: Internal anti-corrosion coating, UV resistant, 316 stainless hinge and spring, IPX4 waterproof with cover closed.
- Important Info: Use your device’s supplied cable for optimal charging; full 60W output requires 24V system for laptops.
- Electrical Specs:
- Input Voltage: 10-32V DC (12/24V system)
- Input Current: Max 6A (10A fuse recommended)
- USB-C Output: 12V System: 5V⎓3A, 9V⎓3A, 12V⎓3A Max; 24V System: 5V⎓3A, 9V⎓3A, 12V⎓3A, 15V⎓3A, 20V⎓3A Max
- USB-A Output: 12V System: 5V⎓3A, 9V⎓3A, 12V⎓3A Max; 24V System: 5V⎓3A, 9V⎓3A, 12V⎓3A, 15V⎓3A, 20V⎓3A Max
- Standby Draw: 0.01W
- Certifications: CE, FCC, UKCA, C-Tick, ROHS, WEE
- Item Number: SCSC-USB-F4
-
