ID
1301688
$ 99.75
1-2 weeks delivery time
-
+
The SC-USB-F3 Flip Pro Max provides rapid charging for USB-C devices with two 60W ports, spring-loaded port protection, and compact marine-grade construction rated IPX4 for washdown readiness. It supports 36W charging on 12V and 60W on 24V systems, works with any USB-C device, and allows simultaneous charging of two devices. Installation uses a 32mm hole saw with an optional front bezel, and it features anti-corrosion coatings, UV resistance, and a stainless steel hinge. Electrical input is 10-32V DC, with a maximum current of 6A, certified CE, FCC, UKCA, C-Tick, ROHS, WEE, item number SCSC-USB-F3.
- Description
- Ask a Question
-
Scanstrut SC-USB-F3 - Flip Pro Max USB-C Connection
Flip Pro Max provides rapid charging for all your USB-C devices onboard, compatible with both 12V and 24V systems. Its compact design and marine-grade materials make it ideal for harsh environments while maintaining sleek usability.
- Power Output: 2x 60W USB-C ports for ultra-fast charging.

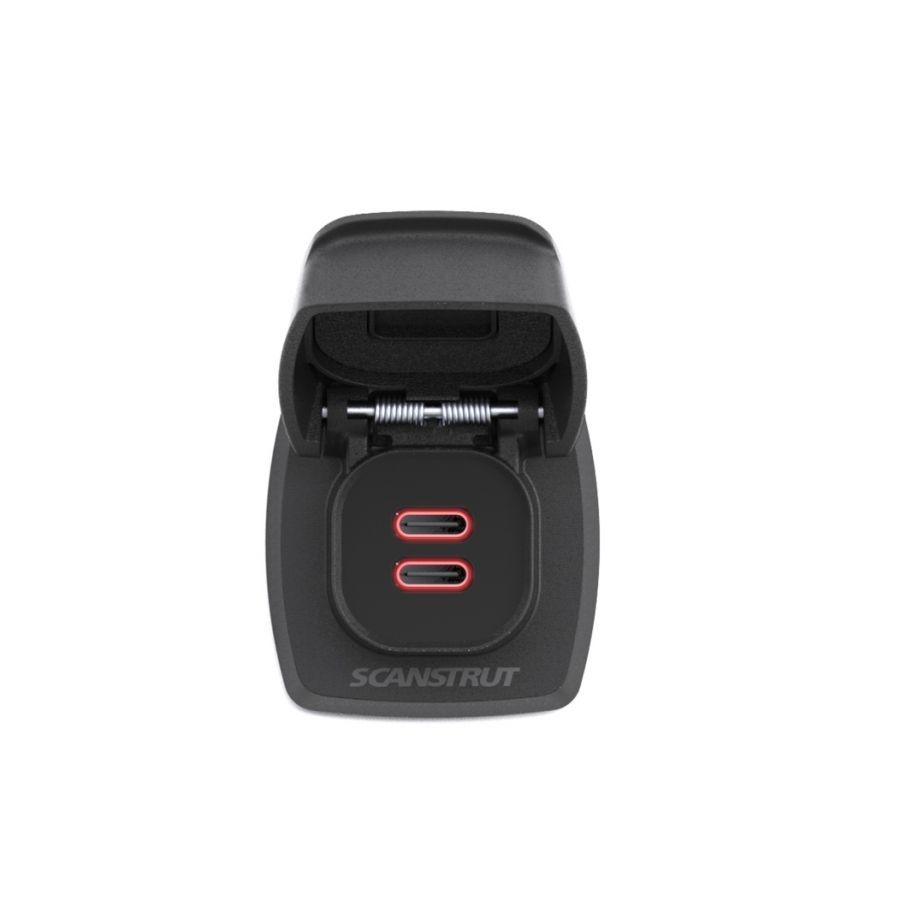

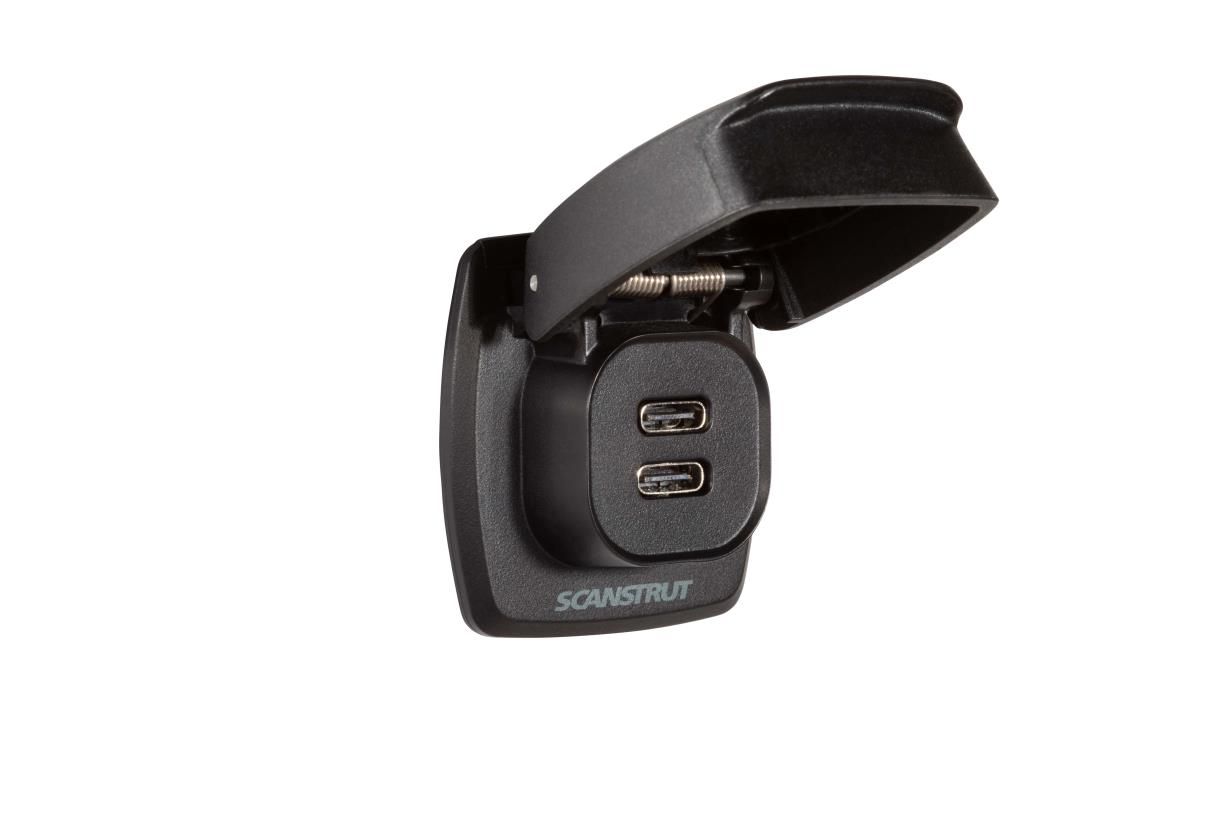

- Port Protection: Spring-loaded cap keeps ports safe from water and debris when not in use; locks open while charging to protect cables.
- Construction: Compact footprint, premium marine-grade materials, IPX4 waterproof for full washdown readiness.
- Charging Speeds: 36W on 12V systems, 60W on 24V systems—perfect for laptops, tablets, and phones.
- USB-C Output Details:
- 24V System: 5V⎓3A, 9V⎓3A, 12V⎓3A, 15V⎓3A, 20V⎓3A Max
- 12V System: 5V⎓3A, 9V⎓3A, 12V⎓3A Max
- Universal Fit: Works with any USB-C device, allows simultaneous charging of 2 devices.

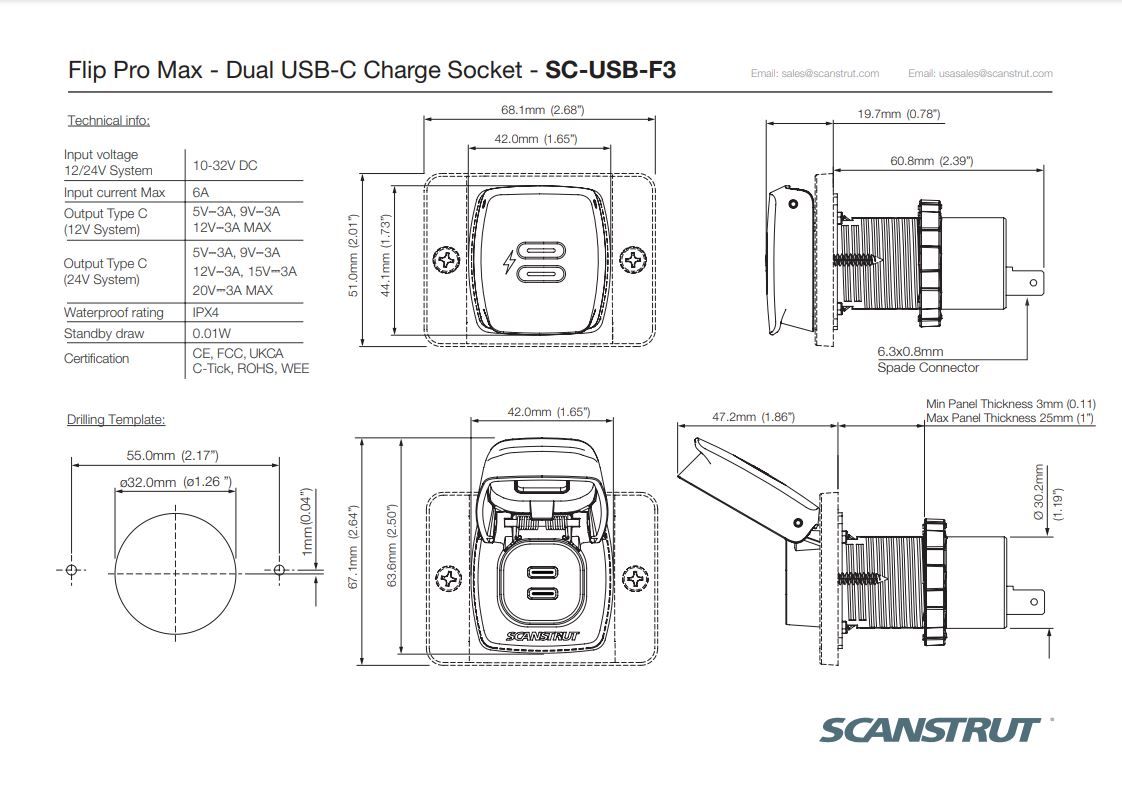

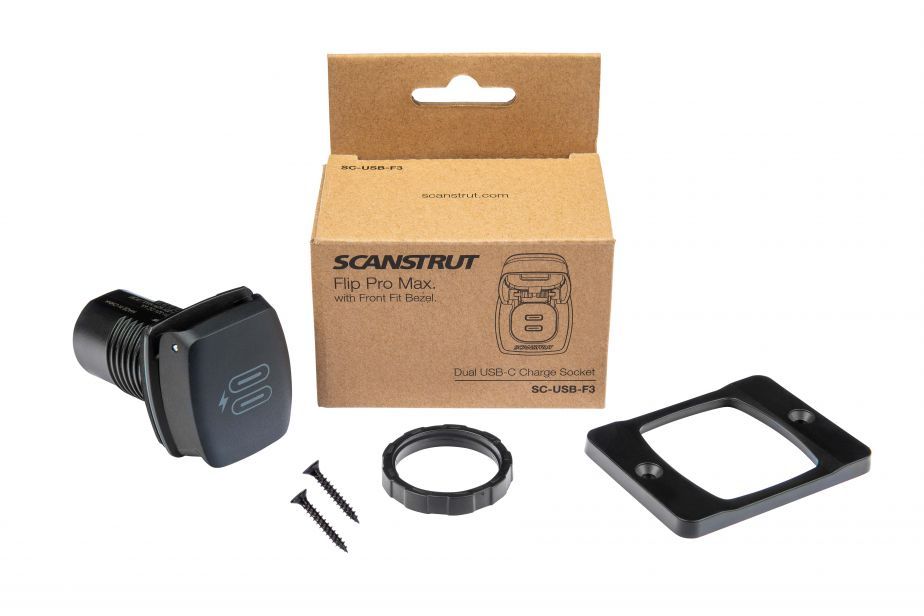

- Installation: Uses a Ø32mm (1.25”) hole saw; optional front bezel included.
- Marine Ready: Anti-corrosion internal coating, UV resistant, 316 stainless hinge and spring, IPX4 waterproof with cover closed.
- Important Info: Use supplied cables for maximum performance; full 60W output requires 24V system.
- Electrical Specs:
- Input Voltage: 10-32V DC (12/24V system)
- Input Current: Max 6A (10A fuse recommended)
- Standby Draw: 0.01W
- Certifications: CE, FCC, UKCA, C-Tick, ROHS, WEE
- Item Number: SCSC-USB-F3
-
